KTA1664 Datasheet PNP Transistors

Manufacturer: Kexin Semiconductor

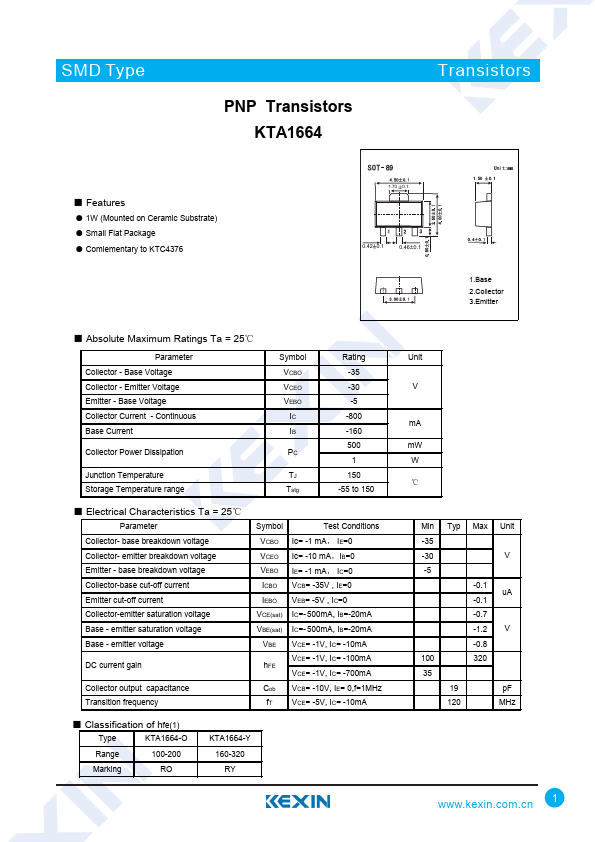

Overview: SMD Type PNP Transistors KTA1664 Transistors ■.

Datasheet Details

s.
1W (Mounted on Ceramic Substrate).
Small Flat Package.
Comlementary to KTC4376 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter.
Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Base Current Collector Power Dissipation Junction Temperature Storage Temperature range Symbol VCBO VCEO VEBO IC IB PC TJ Tstg Rating -35 -30 -5 -800 -160 500 1 150 -55 to 150.
