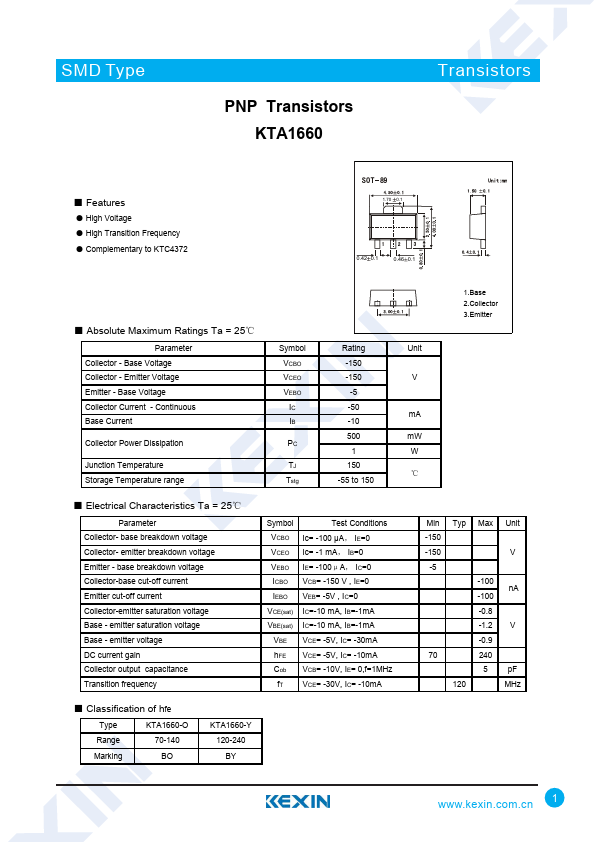

KTA1660 Datasheet PNP Transistors

Manufacturer: Kexin Semiconductor

Overview: SMD Type PNP Transistors KTA1660 Transistors ■.

Key Features

  • s.
  • High Voltage.
  • High Transition Frequency.
  • Complementary to KTC4372 1.70 0.1 0.42 0.1 0.46 0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Base Current Collector Power Dissipation Junction Temperature Storage Temperature range Symbol Rating Unit VCBO -150 VCEO -150 V VEBO -5 IC -50 mA IB -10 500 mW PC 1 W TJ 150 ℃ Tstg -55 to 150 1.Base 2.
