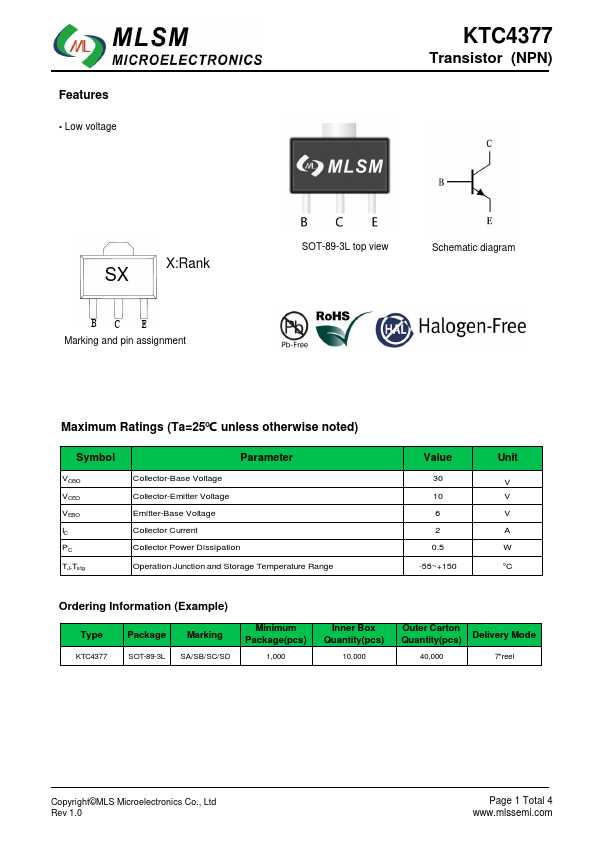

KTC4377
KTC4377 is NPN Transistor manufactured by MLS Microelectronics.
Features
- Low voltage
Transistor (NPN)
X:Rank
X:Rank
BC E
Marking and pin assignment
SOT-89-3L top view
Schematic diagram
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
VCBO VCEO VEBO IC PC TJ,Tstg
Parameter
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range
Value
30 10 6 2 0.5 -55~+150
Unit
V V V A W °C
Ordering Information (Example)
Type
Package
SOT-89-3L
Marking
SA/SB/SC/SD
Minimum Package(pcs)
1,000
Inner Box Quantity(pcs)
10,000
Outer Carton Quantity(pcs) Delivery...
