MBR0540
MBR0540 is SCHOTTKY BARRIER DIODE manufactured by MLS Microelectronics.
- Part of the MBR0520 comparator family.
- Part of the MBR0520 comparator family.

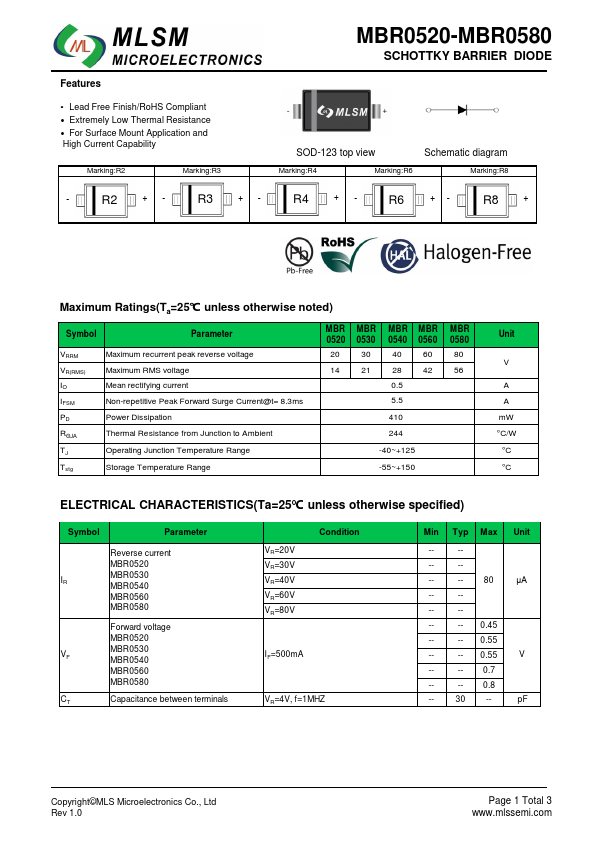

Features
- Lead Free Finish/Ro HS pliant
- Extremely Low Thermal Resistance
- For Surface Mount Application and High Current Capability
Marking:R2
Marking:R3
SOD-123 top view
S1 D2 D1
Schematic diagram
Marking:R4
Marking:R6
Marking:R8
- R2 +
- RD35 +
- R4 +
- R6
+-
R8 +

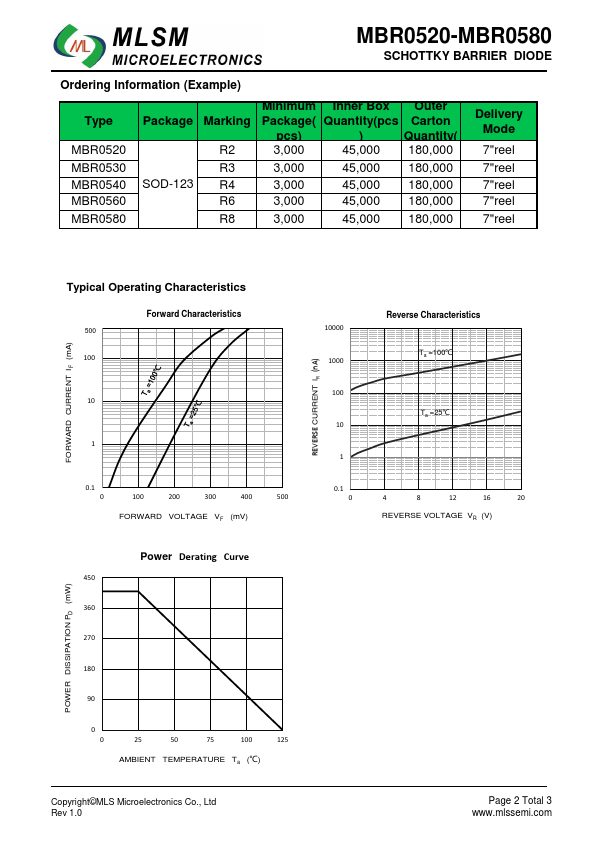

Maximum Ratings(Ta=25℃ unless otherwise noted)
Symbol
Parameter
VRRM VR(RMS) IO IFSM PD RΘJA TJ Tstg
Maximum recurrent peak reverse voltage Maximum RMS voltage Mean rectifying current Non-repetitive Peak Forward Surge Current@t= 8.3ms Power Dissipation Thermal Resistance from Junction to Ambient Operating Junction Temperature Range Storage Temperature Range
MBR 0520 20
MBR 0530
MBR 0540
MBR 0560
21 28 42
-40~+125
-55~+150
MBR 0580...
