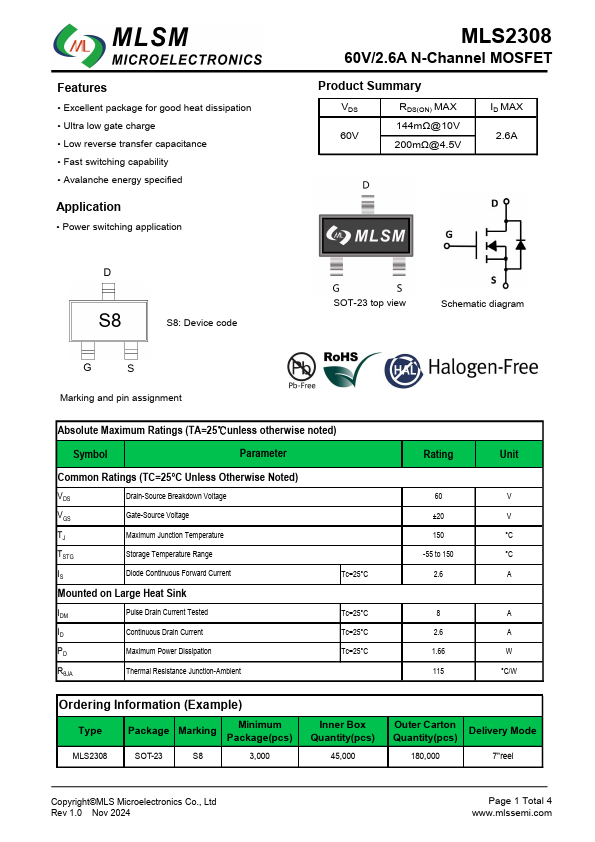

MLS2308
MLS2308 is N-Channel MOSFET manufactured by MLS Microelectronics.
Features
- Excellent package for good heat dissipation
- Ultra low gate charge
- Low reverse transfer capacitance
- Fast switching capability
- Avalanche energy specified
Application
- Power switching application
60V/2.6A N-Channel MOSFET
Product Summary
VDS 60V
RDS(ON) MAX 144mΩ@S11 0DV2 200mΩD@1 4.5V
ID MAX 2.6A
S8
S8: Device code
SOT-23 top view
Schematic diagram
Marking and pin...
