MMBT5550 Datasheet | MLS Microelectronics

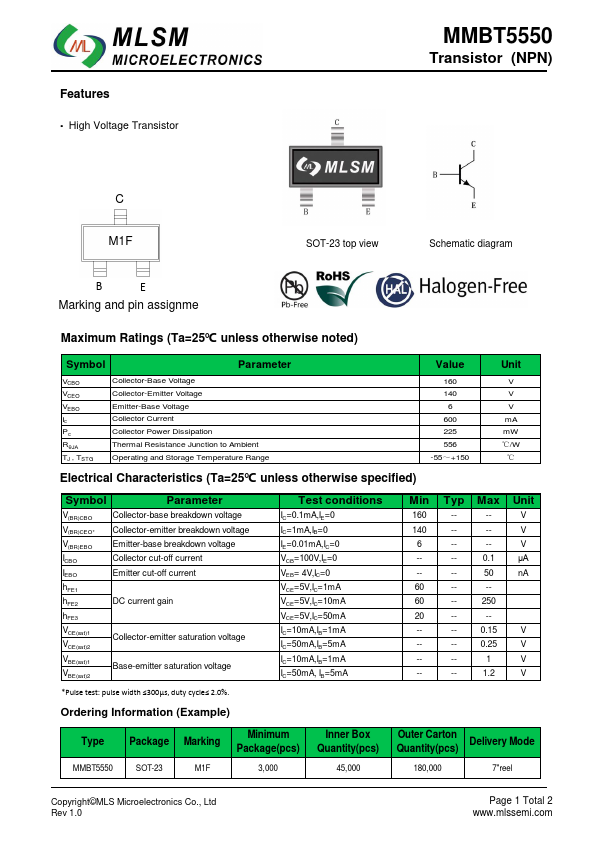

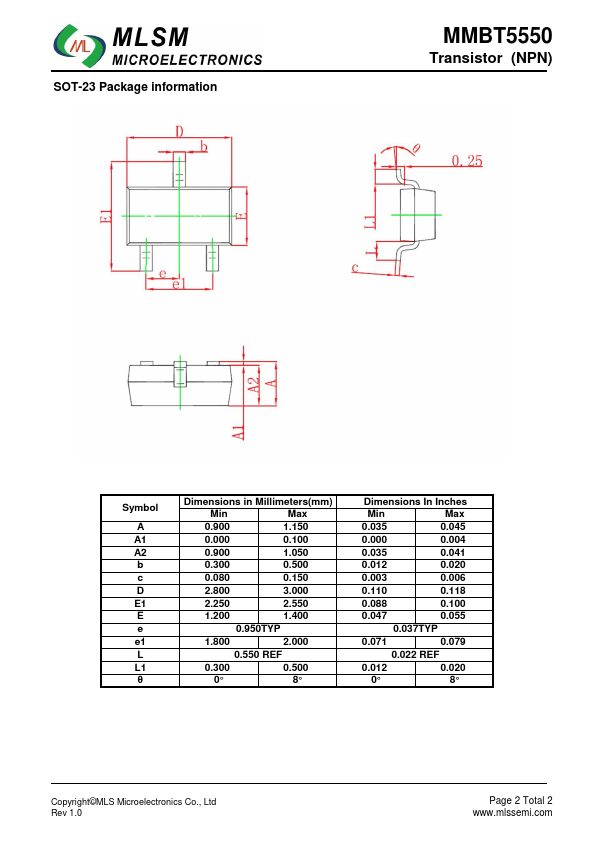

Features - High Voltage Transistor Transistor (NPN) M1F SOT-23 top view Schematic diagram Marking and pin assignment Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol Parameter VCBO VCEO VEBO Ic Pc RθJA TJ , TSTG Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance Junction to Ambient Operating and Storage Temperature Range Electrical Characteristics (Ta=25℃ unless otherwise specified) Value 160 140 6 600 225 556 -55～+150 Unit V V V mA mW ℃/W ℃ Symbol Parameter V(BR)CBO V(BR)CEO- V(BR)EBO ICBO IEBO hFE1 hFE2 hFE3 VCE(sat)1 VCE(sat)2 VBE(sat)1 VBE(sat)2 Collector-base...
