MMSTA42
MMSTA42 is NPN Transistor manufactured by MLS Microelectronics.
Features
- High Breakdown Voltage
- Low Collector-Emitter Saturation Voltage
- plementary to MMSTA92(PNP)
Transistor (NPN)
K3M
Marking and pin assignment
SOT-323 top view
Schematic diagram

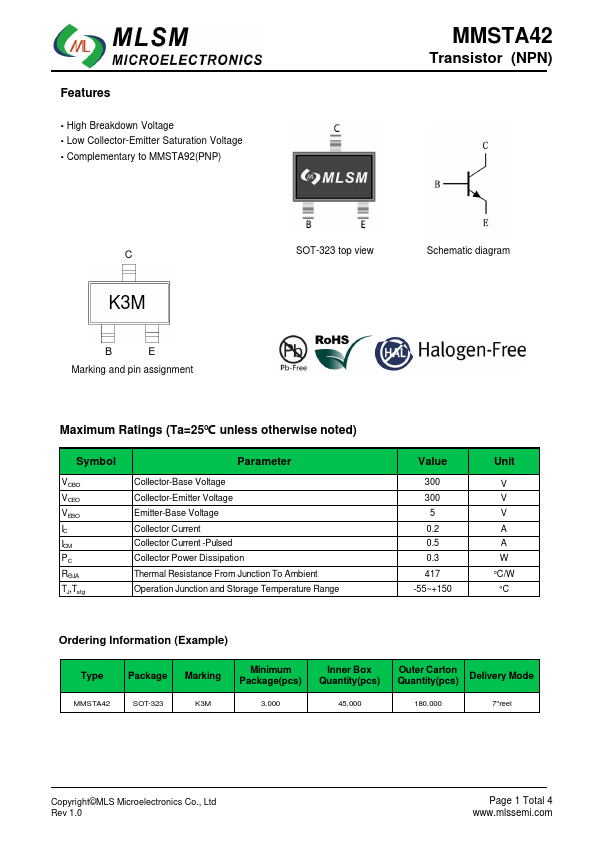

Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
VCBO VCEO VEBO IC ICM PC RΘJA TJ,Tstg
Parameter
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Current -Pulsed Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range
Value
300 300
5 0.2 0.5 0.3 417 -55~+150
Unit
V V V A A W °C/W °C
Ordering Information (Example)
Type
Package
SOT-323
Marking
K3M
Minimum Package(pcs)
3,000
Inner Box Quantity(pcs)
45,000
Outer Carton Quantity(pcs)
Delivery Mode
180,000
7"reel
Copyright©MLS Microelectronics Co., Ltd Rev 1.0
Page 1 Total 4 .mlssemi.
Transistor (NPN)

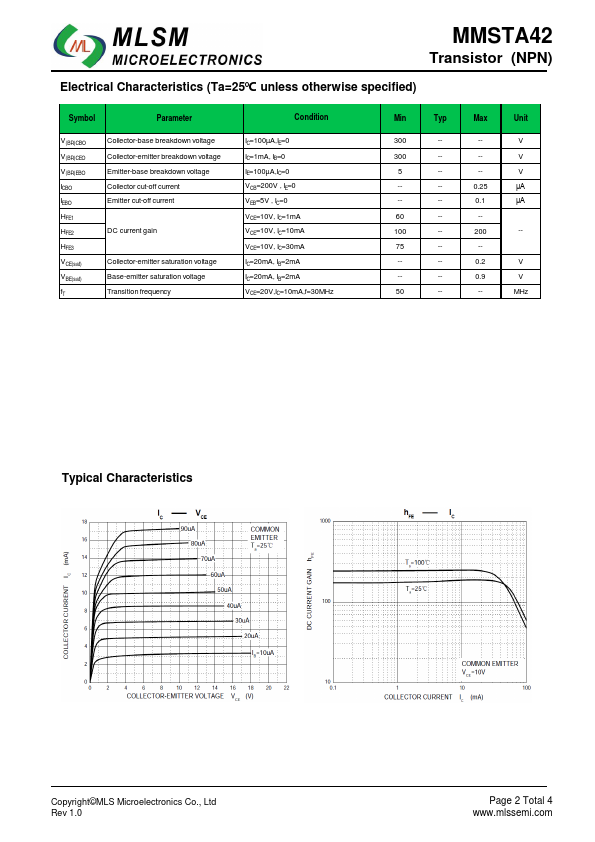

Electrical Characteristics (Ta=25℃ unless otherwise...
