RB461F
RB461F is SCHOTTKY BARRIER DIODE manufactured by MLS Microelectronics.
Features
- Low-power rectification
- For switching power supply
- Ultra low VF
- IF=0.7A guaranteed despite the size
3B

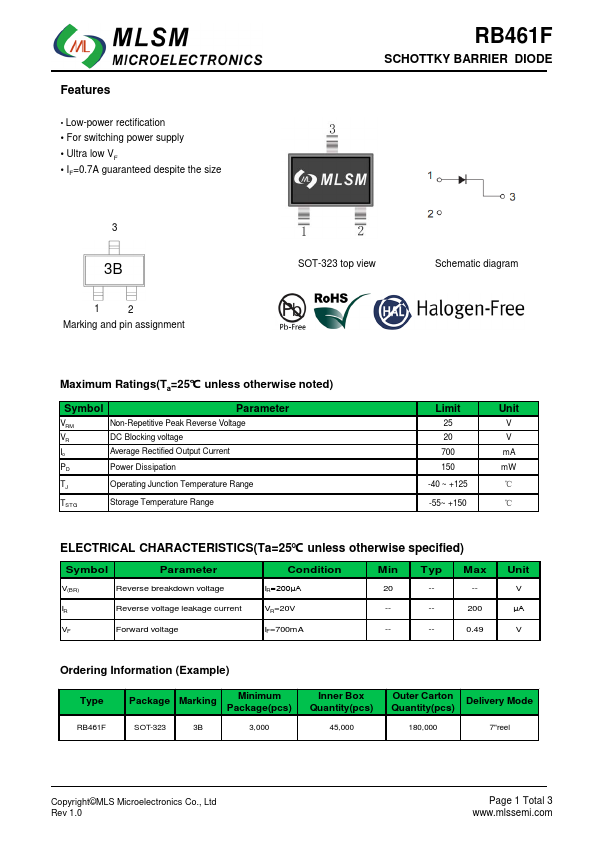

Marking and pin assignment
SCHOTTKY BARRIER DIODE

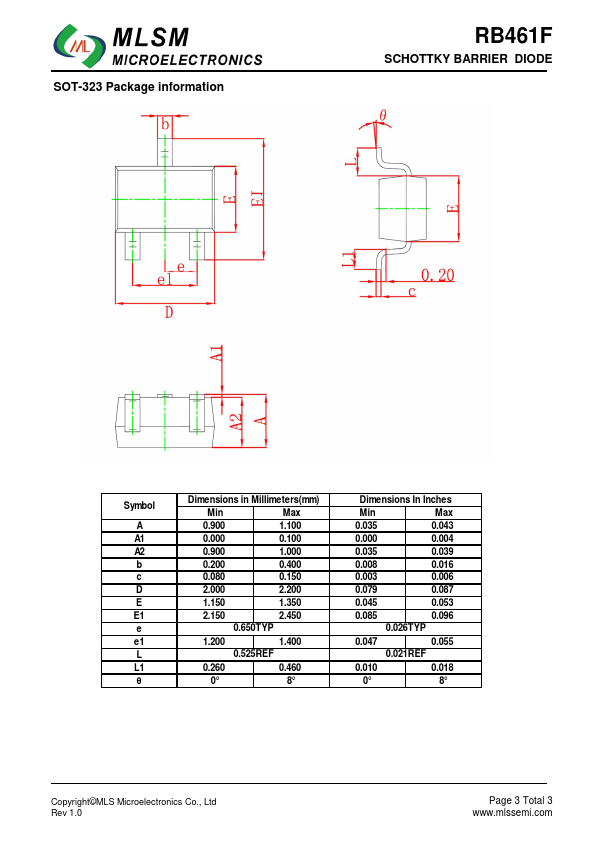

SOT-323 top view
Schematic diagram
Maximum Ratings(Ta=25℃ unless otherwise noted)
Symbol
Parameter
Non-Repetitive Peak Reverse Voltage
DC Blocking voltage
Io
Average Rectified Output Current
Power Dissipation
Operating Junction Temperature Range
TST G
Storage Temperature Range
Limit
25 20 700 150
-40 ~ +125
-55~ +150
Unit
V V m A m W
℃
℃

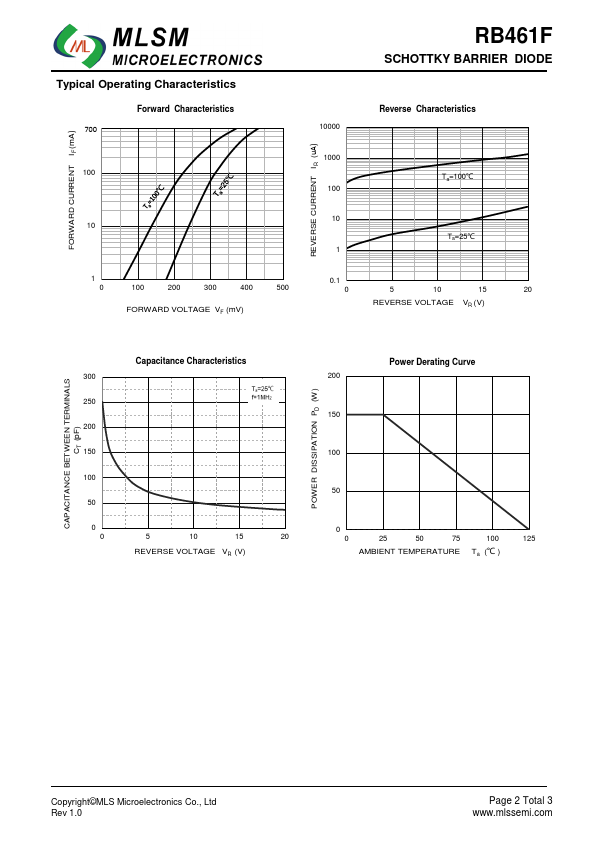

ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified)
Symbol
Parameter
Condition...
