RB551V-40
RB551V-40 is SCHOTTKY BARRIER DIODE manufactured by MLS Microelectronics.
Features

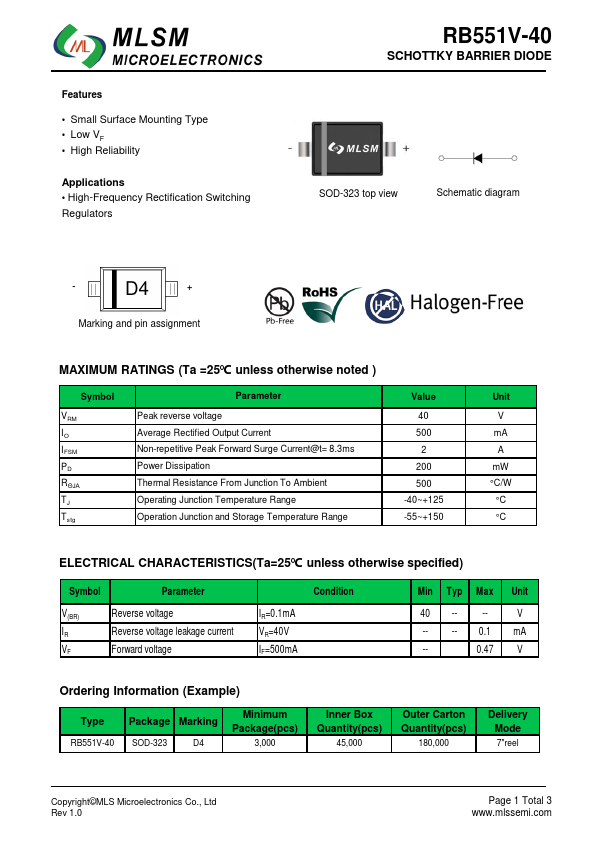

- Small Surface Mounting Type
- Low VF
- High Reliability
Applications
- High-Frequency Rectification Switching Regulators
SCHOTTKY BARRIER DIODE
D2 D1

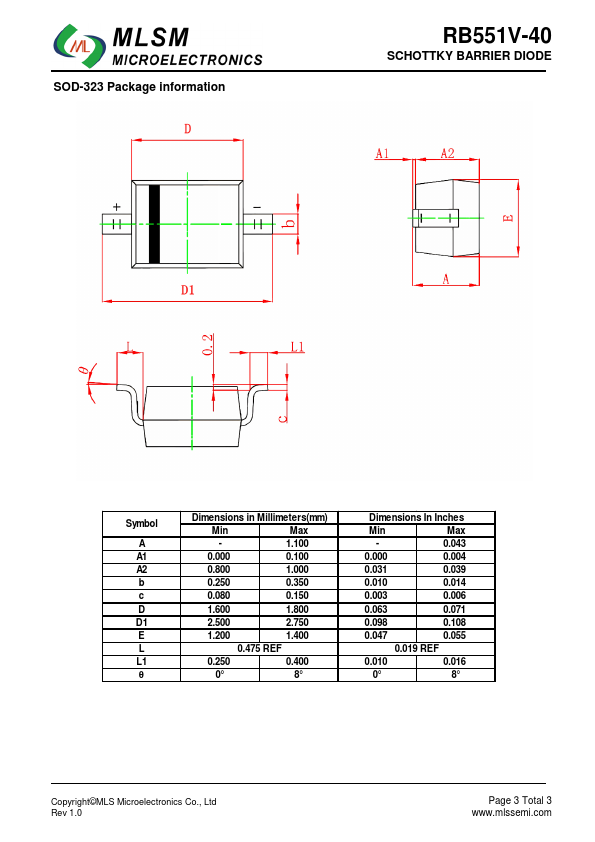

SOD-323 top view
Schematic diagram
- D4 +
Marking and pin assignment
MAXIMUM RATINGS (Ta =25℃ unless otherwise noted )
Symbol
VRM IO IFSM PD RΘJA TJ Tstg
Parameter
Peak reverse voltage Average Rectified Output Current Non-repetitive Peak Forward Surge Current@t= 8.3ms Power Dissipation Thermal Resistance From Junction To Ambient Operating Junction Temperature Range Operation Junction and Storage Temperature Range
Value
40 500
2 200 500 -40~+125 -55~+150
Unit
V mA A mW °C/W °C °C

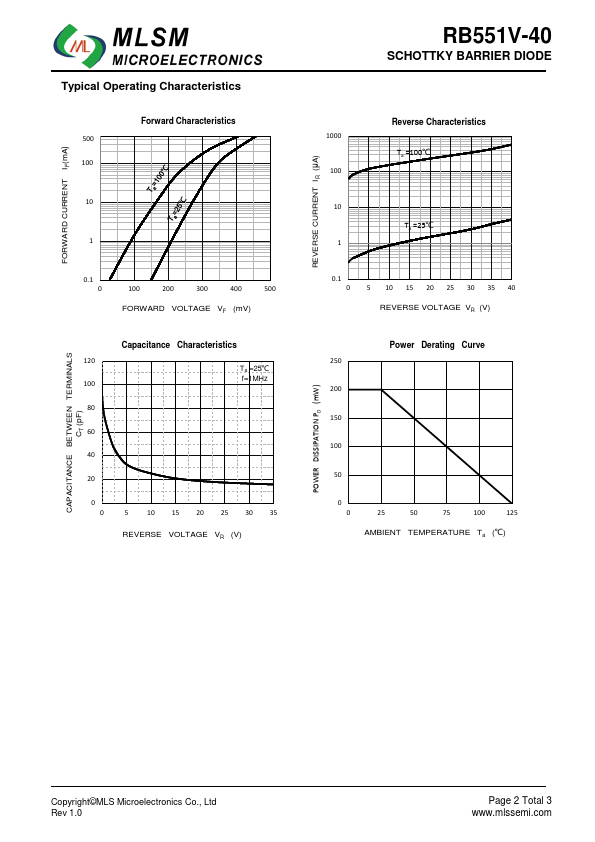

ELECTRICAL CHARACTERISTICS(Ta=25...
