SS14 Datasheet (MLS Microelectronics)

Part SS14
Description Schottky Rectifier Diode
Category Diode
Manufacturer MLS Microelectronics
Size 561.52 KB
SS14 Datasheet (PDF) Download
Pricing from 0.05792 USD, available from Avnet and Newark.
🏠
MLS Microelectronics

SS14 Overview

Key Specifications

Package: SMA
Mount Type: Surface Mount
Pins: 2
Height: 2.5 mm

Key Features

  • VRRM 20~200V
  • High surge current capability
  • Polarity: Color band denotes cathode
SS14 reference image

Representative SS14 image (package may vary by manufacturer)

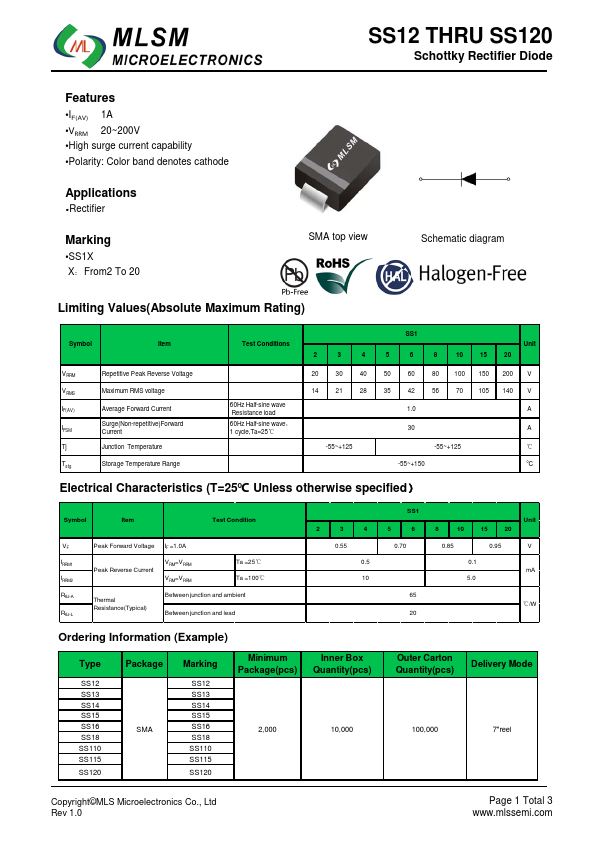

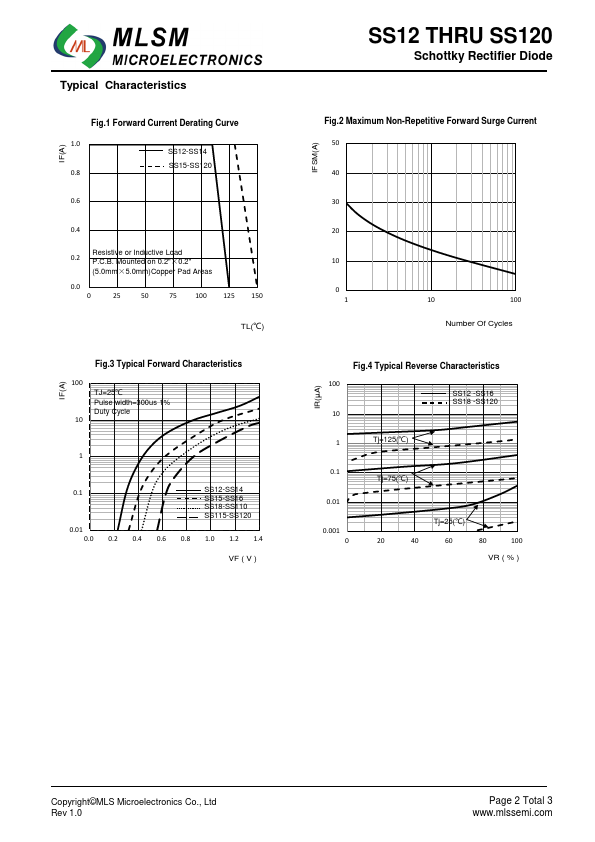

SS14 datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
Avnet 217500 7500+ : 0.05792 USD
15000+ : 0.05589 USD
30000+ : 0.05508 USD
60000+ : 0.05427 USD		 View Offer
Avnet 737259 7500+ : 0.05792 USD
15000+ : 0.05589 USD
30000+ : 0.05508 USD
60000+ : 0.05427 USD		 View Offer
