MPM3812C - 1A Power Module

Description

The MPM3812C is a monolithic, step-down switch-mode converter with built-in, internal power MOSFETs and an inductor.

The MPM3812C achieves 1A of continuous output current (IOUT) from a 2.3V to 5.5V input voltage (VIN) range, with excellent load and line regulation.

Features

  • include cycle-by-cycle current limiting and thermal shutdown. The MPM3812C requires a minimal number of readily available, standard external components, and is available in an ultra-small ECLGA-6 (1.5mmx2mmx0.96mm) package. MPM3812C 2.3V to 5.5V Input, 1A, Power Module in an Ultra-Small Package.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MPM3002 TMOS ICePAK Power-Module Motorola
MPM3003 ICE PAK POWER-MODULE Motorola
MPM3201 (MPM Series) Rotary Motors Parker
MPM3202 (MPM Series) Rotary Motors Parker
MPM3203 (MPM Series) Rotary Motors Parker

Other Datasheets by Monolithic Power Systems

Part Number Description
MPM3810 1.2A Module Synchronous Step-Down Converter
MPM3810A 1.2A Synchronous Step-Down Converter
MPM3810GQB 1.2A Module Synchronous Step-Down Converter
MPM3811 1A Power Module
MPM3814C Ultra-Small Power Module

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

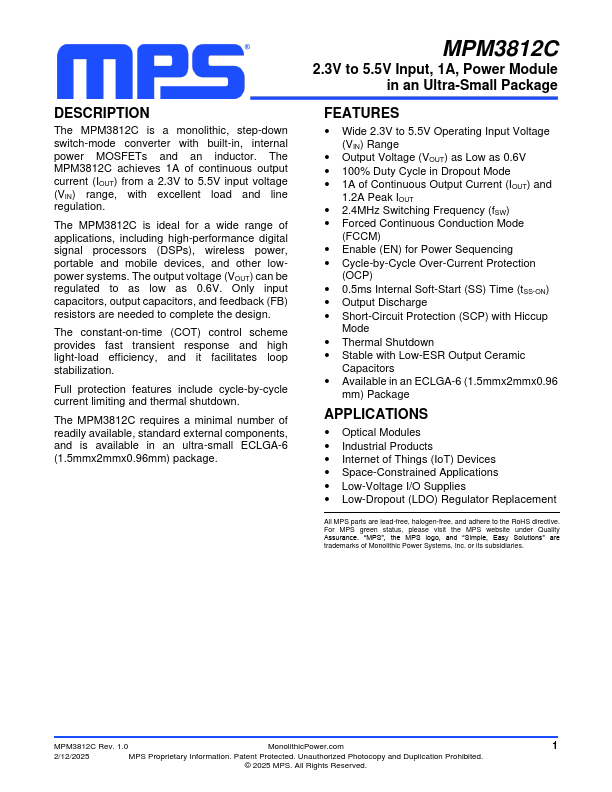

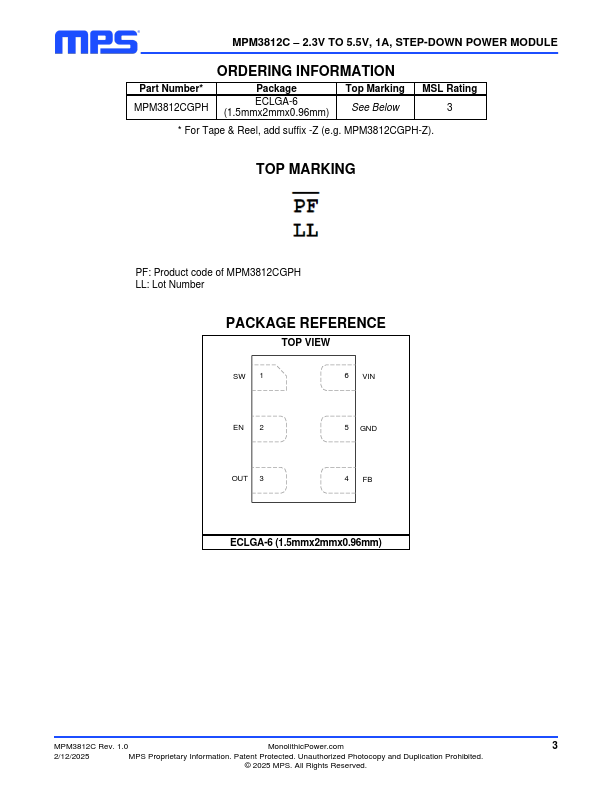

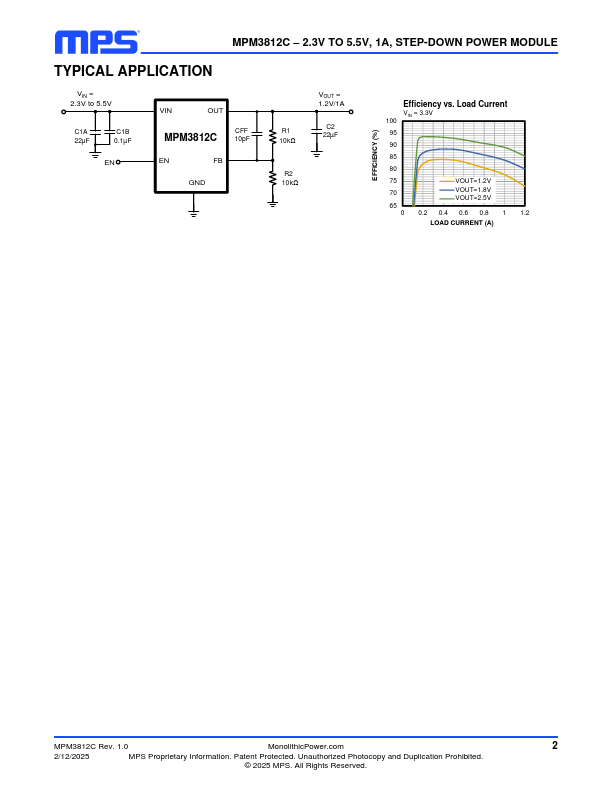

DESCRIPTION The MPM3812C is a monolithic, step-down switch-mode converter with built-in, internal power MOSFETs and an inductor. The MPM3812C achieves 1A of continuous output current (IOUT) from a 2.3V to 5.5V input voltage (VIN) range, with excellent load and line regulation. The MPM3812C is ideal for a wide range of applications, including high-performance digital signal processors (DSPs), wireless power, portable and mobile devices, and other lowpower systems. The output voltage (VOUT) can be regulated to as low as 0.6V. Only input capacitors, output capacitors, and feedback (FB) resistors are needed to complete the design. The constant-on-time (COT) control scheme provides fast transient response and high light-load efficiency, and it facilitates loop stabilization.
