MPQ2166GRH - Synchronous Buck

This page provides the datasheet information for the MPQ2166GRH, a member of the MPQ2166 Synchronous Buck family.

Description

The MPQ2166 is an internally compensated, dual, PWM, synchronous, step-down regulator that operates from a 2.7V to 6V input and generates an output voltage as low as 0.6V.

Features

  • include cycle-by-cycle current limit and thermal shutdown. The MPQ2166 requires a minimum number of readily available, standard, external components and is available in QFN-18 (2mmx3mm) and QFN-18 (2.5mmx3.5mm) packages. MPQ2166 6V, Dual 2A/2A or 3A/1A, Low Quiescent Current, Synchronous Buck with PG and SS AEC-Q100 Qualified.

📥 Download Datasheet

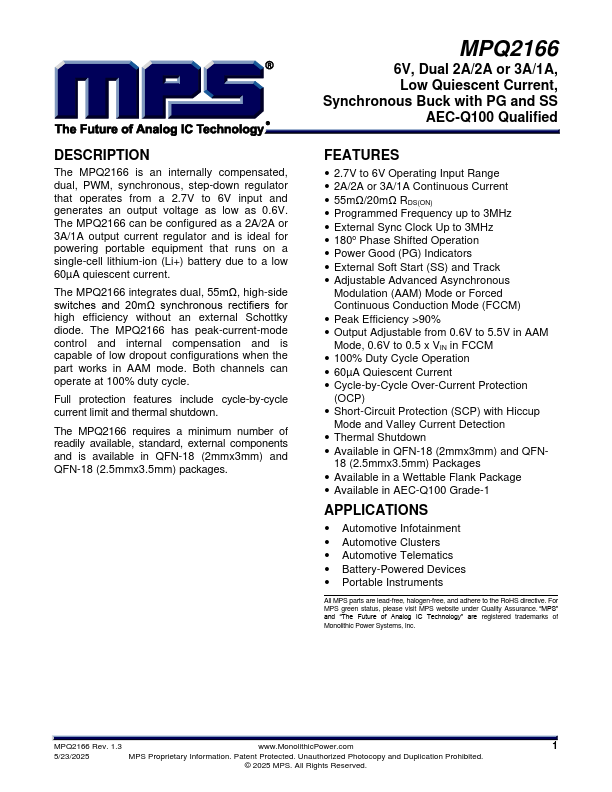

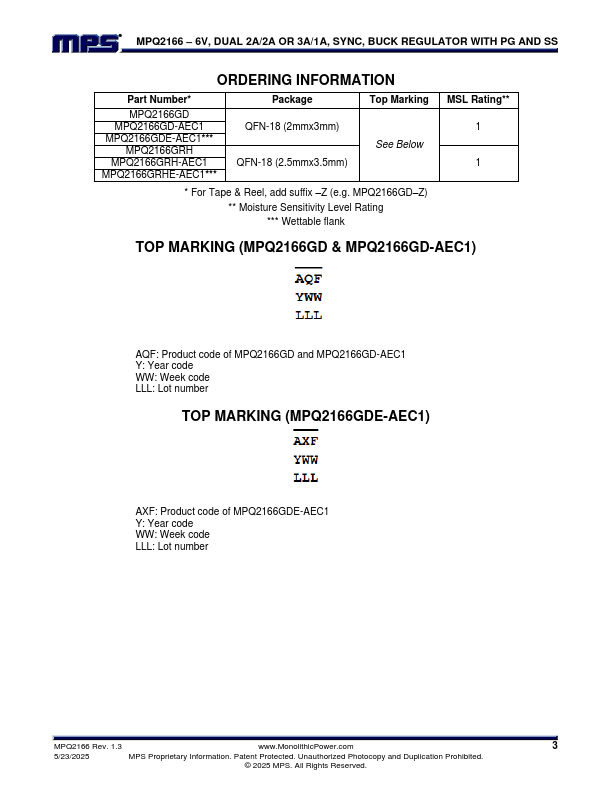

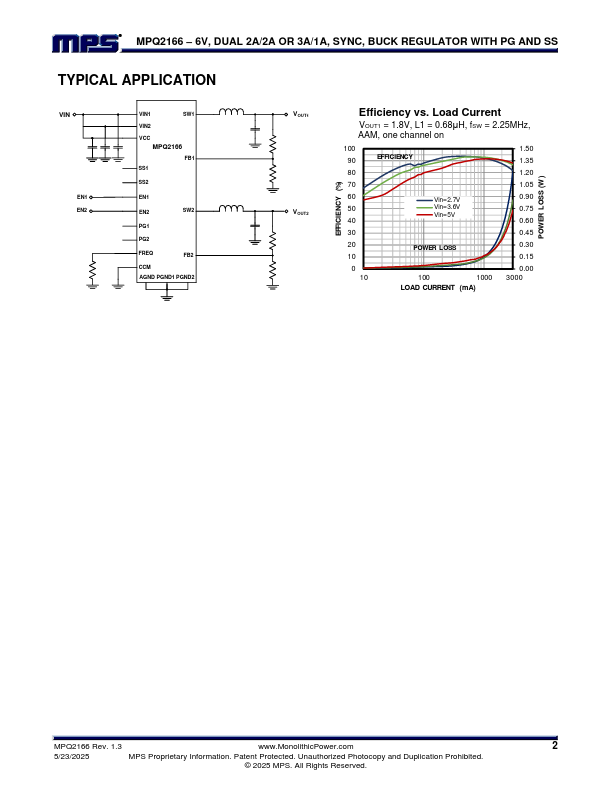

Datasheet preview – MPQ2166GRH

📁 Similar Datasheet

  • MPQ2221 - NPN Transistor (Motorola)
  • MPQ2222 - QUAD TRANSISTORS (Central)
  • MPQ2222 - Quad Transistors (Motorola Semiconductor)
  • MPQ2222A - Quad Transistors (Motorola Semiconductor)
  • MPQ2222A - QUAD TRANSISTORS (Central Semiconductor)
  • MPQ2369 - NPN Silicon Quad Transistor (Central Semiconductor)
  • MPQ2369 - QUAD SWITCHING TRANSISTOR (Motorola)
  • MPQ2483 - QUAD AMPLIFIER TRANSISTOR (Motorola)
  • MPQ2484 - QUAD AMPLIFIER TRANSISTOR (Motorola)
  • MPQ2906 - PNP SILICON QUAD TRANSISTOR (Central Semiconductor)
Other Datasheets by MPS

Full PDF Text Transcription

Click to expand full text
DESCRIPTION The MPQ2166 is an internally compensated, dual, PWM, synchronous, step-down regulator that operates from a 2.7V to 6V input and generates an output voltage as low as 0.6V. The MPQ2166 can be configured as a 2A/2A or 3A/1A output current regulator and is ideal for powering portable equipment that runs on a single-cell lithium-ion (Li+) battery due to a low 60µA quiescent current. The MPQ2166 integrates dual, 55mΩ, high-side switches and 20mΩ synchronous rectifiers for high efficiency without an external Schottky diode. The MPQ2166 has peak-current-mode control and internal compensation and is capable of low dropout configurations when the part works in AAM mode. Both channels can operate at 100% duty cycle.
