MX25L512C - 512K-BIT [x 1] CMOS SERIAL FLASH

Description

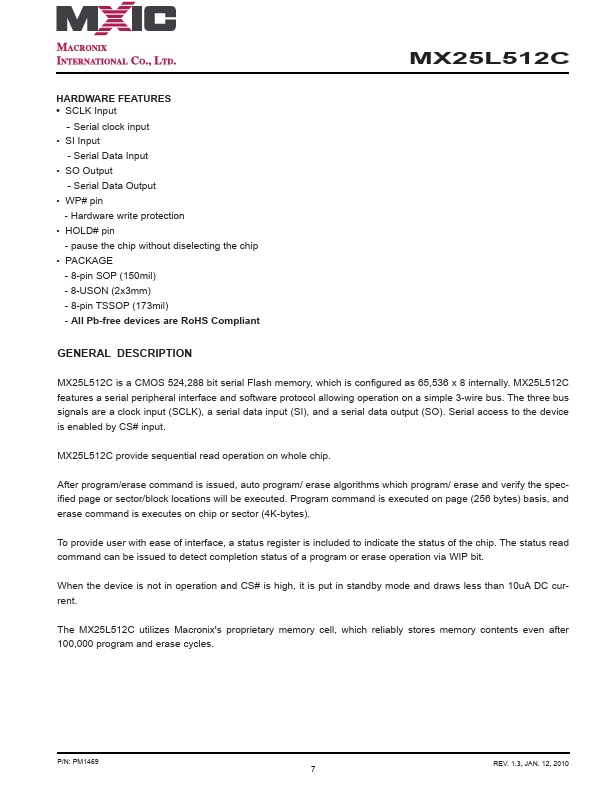

MX25L512C is a CMOS 524,288 bit serial Flash memory, which is configured as 65,536 x 8 internally.

📥 Download Datasheet

Datasheet Details

Part number MX25L512C
Manufacturer Macronix
File Size 1.32 MB
Description 512K-BIT [x 1] CMOS SERIAL FLASH
Datasheet download datasheet MX25L512C Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MX25L51245G FLASH MEMORY MACRONIX
MX25L512E CMOS SERIAL NOR FLASH MEMORY MACRONIX
MX25L1006E CMOS 1Mk-bit serial Flash memory MACRONIX
MX25L1026E 1M-BIT [x 1/x 2] CMOS SERIAL FLASH Macronix
MX25L12833F 128M-BIT FLASH MEMORY MACRONIX

Other Datasheets by Macronix

Part Number Description
MX25L512 512K-BIT [x 1] CMOS SERIAL FLASH
MX25L5121E 512K-BIT [x 1] CMOS SERIAL FLASH Memory
MX25L1005 1M-BIT [x 1] CMOS SERIAL FLASH
MX25L1021E 512K-BIT [x 1] CMOS SERIAL FLASH Memory
MX25L1025C 1M-BIT [x 1] CMOS SERIAL FLASH

Full PDF Text Transcription

Click to expand full text

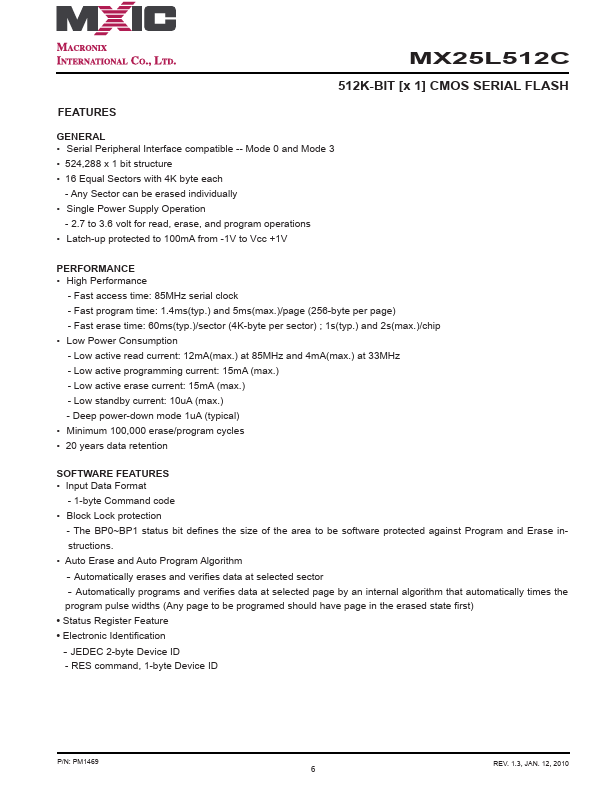

MX25L512C MX25L512C DATASHEET P/N: PM1469 1 REV. 1.2, OCT. 06, 2009 MX25L512C 512K-BIT [x 1] CMOS SERIAL FLASH FEATURES GENERAL • Serial Peripheral Interface compatible -- Mode 0 and Mode 3 • 524,288 x 1 bit structure • 16 Equal Sectors with 4K byte each - Any Sector can be erased individually • Single Power Supply Operation - 2.7 to 3.6 volt for read, erase, and program operations • Latch-up protected to 100mA from -1V to Vcc +1V PERFORMANCE • High Performance - Fast access time: 85MHz serial clock - Fast program time: 1.4ms(typ.) and 5ms(max.)/page (256-byte per page) - Fast erase time: 60ms(typ.)/sector (4K-byte per sector) ; 1s(typ.) and 2s(max.)/chip • Low Power Consumption - Low active read current: 12mA(max.) at 85MHz and 4mA(max.
