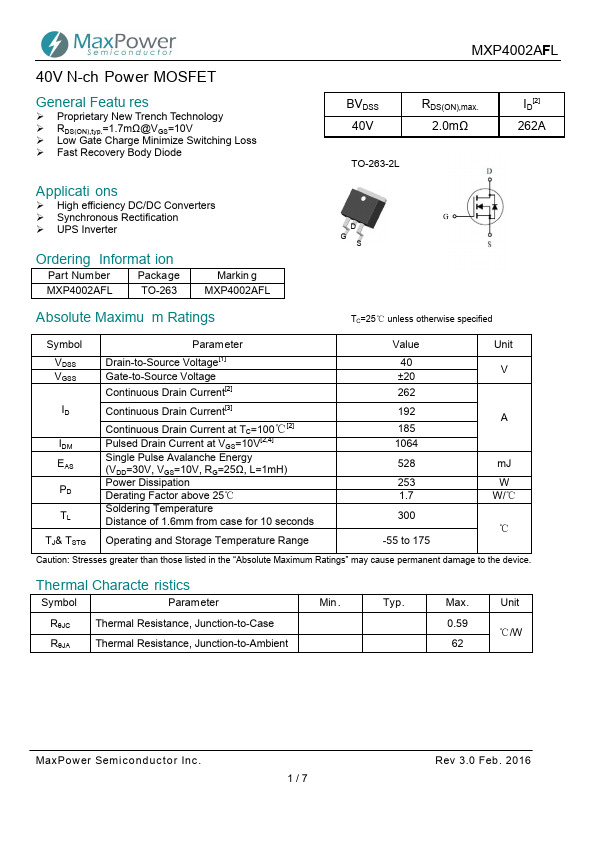

MXP4002AFL
40V N-ch Power MOSFET
General Featu res
- Proprietary New Trench Technology
- RDS(ON),typ.=1.7mΩ@VGS=10V
- Low Gate Charge Minimize Switching Loss
- Fast Recovery Body Diode
BVDSS 40V
RDS(ON),max. 2.0mΩ
TO-263-2L
ID[2] 262A
Applicati ons
- High efficiency DC/DC Converters
- Synchronous Rectification
- UPS Inverter
Ordering Informat ion
Part Number
Packa ge
Markin g
TO-263
Absolute Maximu m Ratings
TC=25℃ unless otherwise specified
Symbol VDSS VGSS
IDM EAS PD TL TJ& TSTG
Param eter
Drain-to-Source Voltage[1] Gate-to-Source Voltage Continuous Drain Current[2]
Continuous Drain Current[3]
Continuous Drain Current at TC=100℃[2]
Pulsed Drain Current at VGS=10V[2,4] Single Pulse Avalanche Energy (VDD=30V, VGS=10V, RG=25Ω, L=1m H) Power Dissipation Derating Factor above 25℃ Soldering Temperature Distance of 1.6mm from case for 10 seconds
Operating and Storage Temperature Range
Value 40 ±20 262 192 185
528 253 1.7 300
-55 to...
