MIC5213 - Low-Dropout Regulator

General Description

The MIC5213 is a µCap 80mA linear voltage regulator in the Teeny™ SC-70 package.

Featuring half the footprint of the standard SOT-23 package, this Teeny™ SC-70 regulator has very low dropout voltage (typically 20mV at light loads and 300mV at 80mA) and very low ground current (225µA at 20mA output).

Key Features

  • include current limiting, overtemperature shutdown, and protection against reversed battery. The MIC5213 is available in 2.5V, 2.6V, 2.7V, 2.8V, 3.0V, 3.3V, 3.6V, and 5.0V fixed voltages. Other voltages are available; contact Micrel for details. Ordering Information Features.
  • Teeny™ SC-70 package.
  • Wide selection of output voltages.
  • Guaranteed 80mA output.
  • Low quiescent current.
  • Low dropout voltage.
  • Tight load and line regulation.
  • Lo.

📥 Download Datasheet

Datasheet Details

Part number MIC5213
Manufacturer Micrel Semiconductor
File Size 48.12 KB
Description Low-Dropout Regulator
Datasheet download datasheet MIC5213 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MIC5210 Dual 150mA LDO Regulator Microchip
MIC5211 Dual uCap 80mA LDO Regulator Microchip
MIC5200 100mA Low-Dropout Regulator Microchip
MIC5202 Dual 100mA Low-Dropout Regulator Microchip
MIC5205 150mA Low-Noise LDO Regulator Microchip

Other Datasheets by Micrel Semiconductor

Part Number Description
MIC5210 Dual 150mA LDO Regulator Preliminary Information
MIC5211 Dual uCap 80mA LDO Regulator
MIC5212 Dual 500mA LDO Regulator
MIC5216 500mA-Peak Output LDO Regulator Preliminary Information
MIC5219 500mA-Peak Output LDO Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

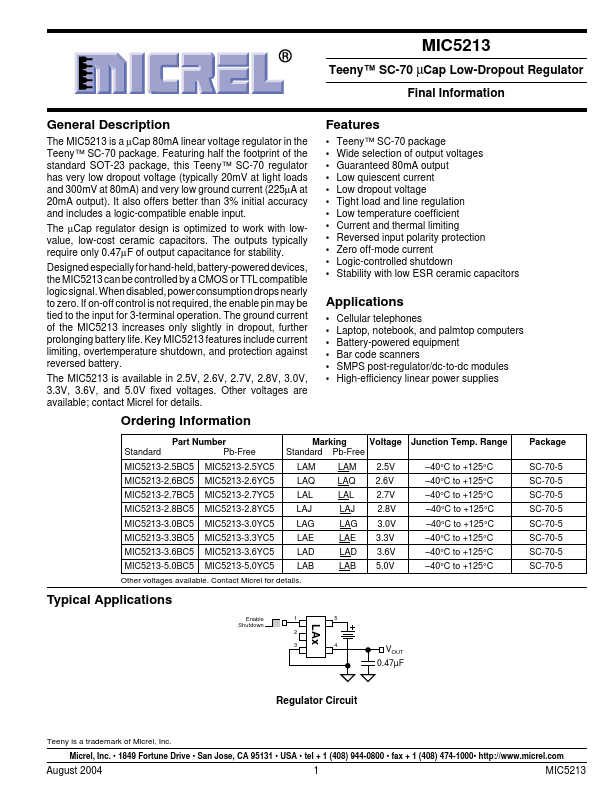

MIC5213 Micrel MIC5213 Teeny™ SC-70 µCap Low-Dropout Regulator Final Information General Description The MIC5213 is a µCap 80mA linear voltage regulator in the Teeny™ SC-70 package. Featuring half the footprint of the standard SOT-23 package, this Teeny™ SC-70 regulator has very low dropout voltage (typically 20mV at light loads and 300mV at 80mA) and very low ground current (225µA at 20mA output). It also offers better than 3% initial accuracy and includes a logic-compatible enable input. The µCap regulator design is optimized to work with lowvalue, low-cost ceramic capacitors. The outputs typically require only 0.47µF of output capacitance for stability. Designed especially for hand-held, battery-powered devices, the MIC5213 can be controlled by a CMOS or TTL compatible logic signal.
