MCP6561 - 1.8V Low Power Push-Pull Output Comparator

General Description

The Microchip Technology Inc.

MCP6561/1R/1U/2/4 families of CMOS/TTL-compatible comparators are offered in single, dual and quad configurations.

These comparators are optimized for low-power 1.8V, single-supply applications with greater than rail-to-rail input operation.

Key Features

  • Propagation Delay at 1.8 VDD: - 56 ns (typical) high-to-low - 49 ns (typical) low-to-high.
  • Low Quiescent Current: 100 µA (typical).
  • Input Offset Voltage: ±3 mV (typical).
  • Rail-to-Rail Input: VSS.
  • 0.3V to VDD + 0.3V.
  • CMOS/TTL-Compatible Output.
  • Wide Supply Voltage Range: 1.8V to 5.5V.
  • Available in Single, Dual and Quad.

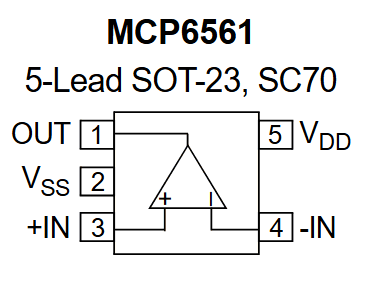

  • Packages: SC70, SOT-23, SOIC, MSOP, TSSOP Typical.
