MCP6561R - 1.8V Low Power Push-Pull Output Comparator

This page provides the datasheet information for the MCP6561R, a member of the MCP6561 1.8V Low Power Push-Pull Output Comparator family.

Datasheet Summary

Description

The Microchip Technology Inc.

MCP6561/1R/1U/2/4 families of CMOS/TTL-compatible comparators are offered in single, dual and quad configurations.

These comparators are optimized for low-power 1.8V, single-supply applications with greater than rail-to-rail input operation.

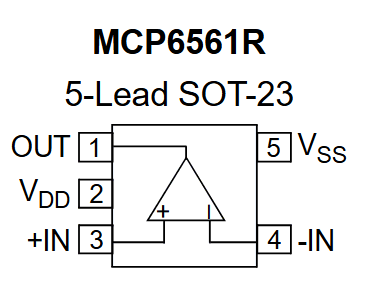

Features

  • Propagation Delay at 1.8 VDD: - 56 ns (typical) high-to-low - 49 ns (typical) low-to-high.
  • Low Quiescent Current: 100 µA (typical).
  • Input Offset Voltage: ±3 mV (typical).
  • Rail-to-Rail Input: VSS.
  • 0.3V to VDD + 0.3V.
  • CMOS/TTL-Compatible Output.
  • Wide Supply Voltage Range: 1.8V to 5.5V.
  • Available in Single, Dual and Quad.
  • Packages: SC70, SOT-23, SOIC, MSOP, TSSOP Typical.

📥 Download Datasheet

Datasheet preview – MCP6561R

Datasheet Details

Part number MCP6561R
Manufacturer Microchip Technology
File Size 824.91 KB
Description 1.8V Low Power Push-Pull Output Comparator
Datasheet download datasheet MCP6561R Datasheet
Additional preview pages of the MCP6561R datasheet.

📁 Similar Datasheet

  • MCP651S - Op Amps (Microchip)
  • MCP653 - Op Amps (Microchip)
  • MCP654 - Op Amps (Microchip)
  • MCP6541 - Push-Pull Output Sub-Microamp Comparators (Microchip)
  • MCP6541R - Push-Pull Output Sub-Microamp Comparators (Microchip)
  • MCP6541U - Push-Pull Output Sub-Microamp Comparators (Microchip)
  • MCP6542 - Push-Pull Output Sub-Microamp Comparators (Microchip)
  • MCP6543 - Push-Pull Output Sub-Microamp Comparators (Microchip)
  • MCP6544 - Push-Pull Output Sub-Microamp Comparators (Microchip)
  • MCP659 - Op Amps (Microchip)
Other Datasheets by Microchip Technology
  • MCP6561 - 1.8V Low Power Push-Pull Output Comparator
  • MCP6561U - 1.8V Low Power Push-Pull Output Comparator
  • MCP6562 - 1.8V Low Power Push-Pull Output Comparator
  • MCP6564 - 1.8V Low Power Push-Pull Output Comparator
  • MCP6566 - 1.8V Low Power Open-Drain Output Comparator
  • MCP6566R - 1.8V Low Power Open-Drain Output Comparator
  • MCP6566U - 1.8V Low Power Open-Drain Output Comparator
  • MCP6567 - 1.8V Low Power Open-Drain Output Comparator

Full PDF Text Transcription

Click to expand full text
MCP6561/1R/1U/2/4 1.8V Low-Power Push-Pull Output Comparator Features • Propagation Delay at 1.8 VDD: - 56 ns (typical) high-to-low - 49 ns (typical) low-to-high • Low Quiescent Current: 100 µA (typical) • Input Offset Voltage: ±3 mV (typical) • Rail-to-Rail Input: VSS – 0.3V to VDD + 0.3V • CMOS/TTL-Compatible Output • Wide Supply Voltage Range: 1.8V to 5.
