MCP6564 Datasheet | Microchip Technology

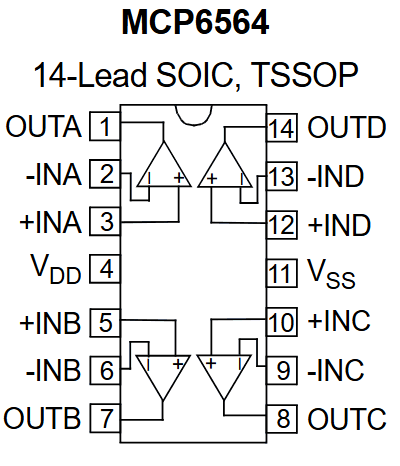

Features - Propagation Delay at 1.8 VDD: - 56 ns (typical) high-to-low - 49 ns (typical) low-to-high - Low Quiescent Current: 100 µA (typical) - Input Offset Voltage: ±3 m V (typical) - Rail-to-Rail Input: VSS - 0.3V to VDD + 0.3V - CMOS/TTL-patible Output - Wide Supply Voltage Range: 1.8V to 5.5V - Available in Single, Dual and Quad - Packages: SC70, SOT-23, SOIC, MSOP, TSSOP Typical Applications - Laptop puters - Mobile Phones - Handheld Electronics - RC Timers - Alarm and Monitoring Circuits - Window parators - Multivibrators Design Aids - Microchip Advanced Part Selector (MAPS) - Analog Demonstration and Evaluation Boards - Application Notes Related Devices - Open-Drain Output: MCP6566/6R/6U/7/9 Typical Application VIN VDD VDD R2 - MCP656X + VOUT R3 RF Description The Microchip Technology Inc. MCP6561/1R/1U/2/4 families of CMOS/TTL-patible parators are offered in single, dual and quad configurations. These parators are optimized for low-power 1.8V, single-supply...
