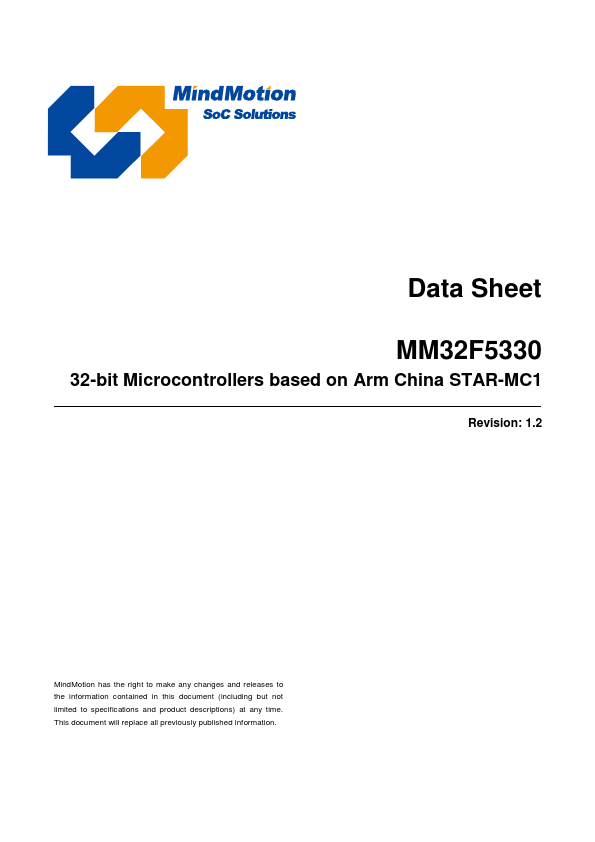

MM32F5330 Overview
Description
1 Introduction 1.1 Overview The MM32F5330 microcontrollers are based on Arm China STAR-MC1 core. These devices have a maximum clocked frequency of 180MHz, built-in 128KB Flash storage, 32KB SRAM, all Flash and SRAM support ECC, and contain an extensive range of peripherals and I/O ports.
Key Features
- Core and system – Frequency up to 180MHz
- 32-bit STAR-MC1 CPU, leveraging Armv8-M mainline ISA, with built-in singleprecision FPU and DSP
- 4KB L1 instruction cache (I-Cache) and 4KB L1 data cache (D-Cache)
- One CORDIC module for trigonometric operation acceleration, support Sin, Cos and Atan operation
- Inter-module connection matrix MindSwitch, supporting direct connec
