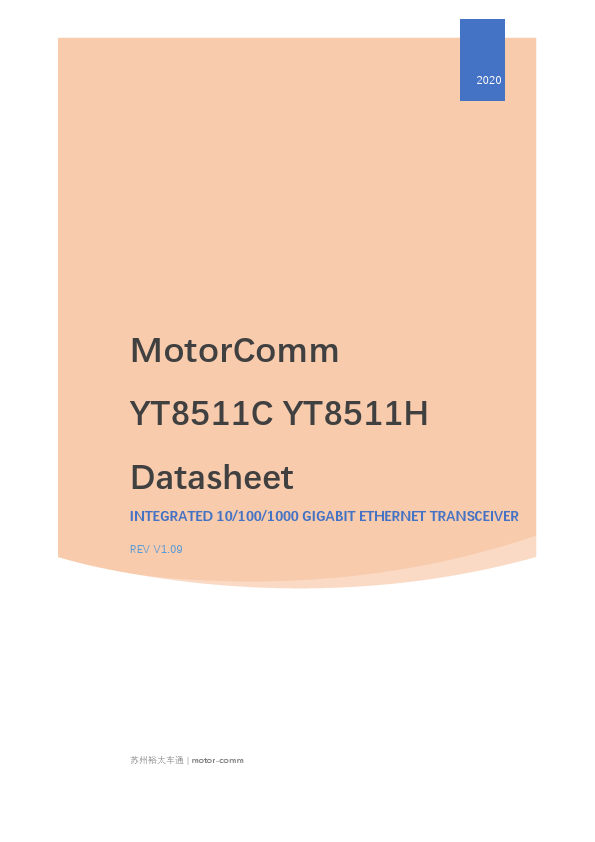

YT8511H

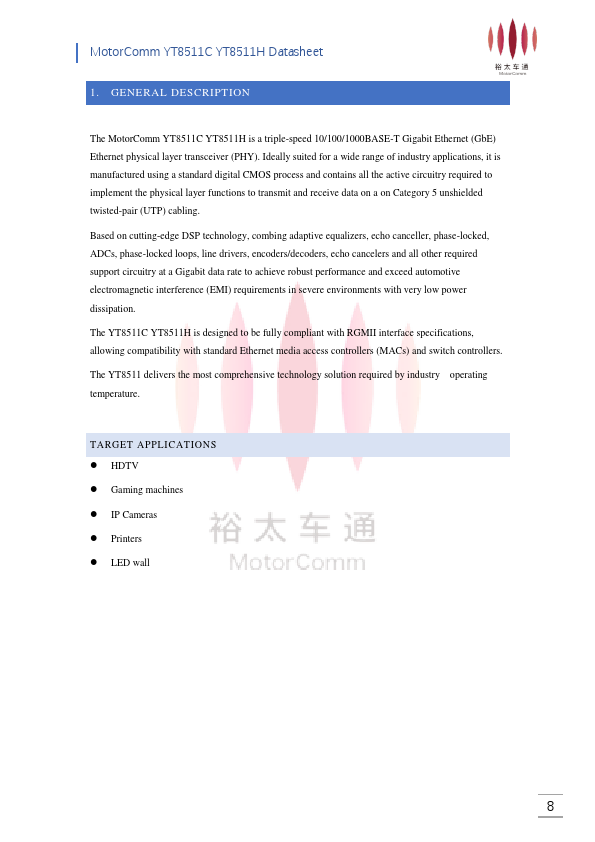

Description
The Motorm YT8511C YT8511H is a triple-speed 10/100/1000BASE-T Gigabit Ethernet (GbE) Ethernet physical layer transceiver (PHY). Ideally suited for a wide range of industry applications, it is manufactured using a standard digital CMOS process and contains all the active circuitry required to implement the physical layer functions to transmit and receive data on a on Category 5 unshielded twisted-pair (UTP) cabling.
Key Features
- 10BASE-Te/100BASE-Tx/1000 BASE-T IEEE 802.3 compliant
- HYPER Range Supported, 4 pair HR-100 mode, enhance 100Mbps distance more than 400 meter
- RGMII timing modes support internal delay and external delay on Rx path
- Error-free operation up to 120 meters of CAT5e cable
- Supports Wake-on-LAN (WoL) to detect magic packet and notify the sleeping system to wake up
- Robust Cable Discharge Event (CDE)
- Jumbo Frame support up to 10KB (full duplex)
- All digital baseline wander correction Automatic channel swap (ACS)
- Automatic MDI/MDIX crossover
- Automatic polarity correction
