YT8512C
YT8512C is FAST ETHERNET TRANSCEIVER manufactured by Motorcomm.

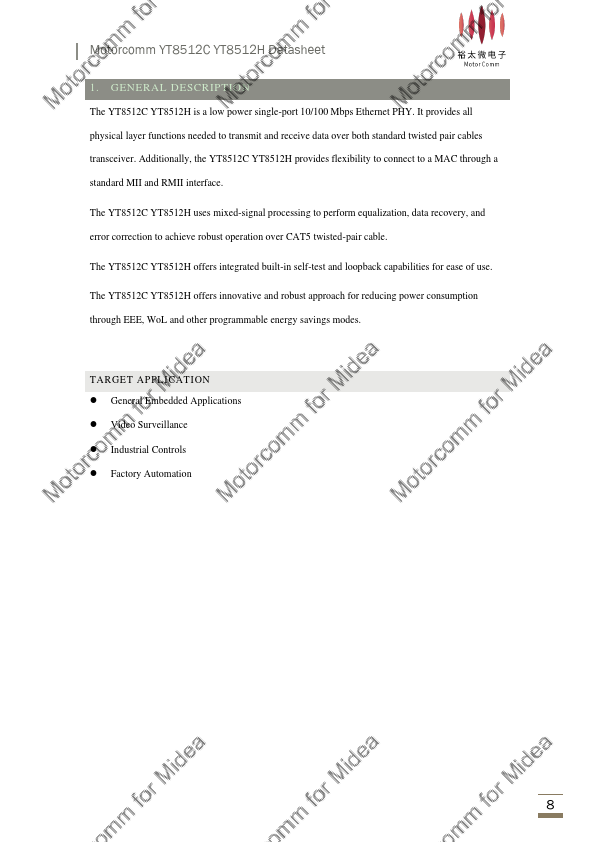

DESCRIPTION
The YT8512C YT8512H is a low power single-port 10/100 Mbps Ethernet PHY. It provides all physical layer functions needed to transmit and receive data over both standard twisted pair cables transceiver. Additionally, the YT8512C YT8512H provides flexibility to connect to a MAC through a standard MII and RMII interface. The YT8512C YT8512H uses mixed-signal processing to perform equalization, data recovery, and error correction to achieve robust operation over CAT5 twisted-pair cable. The YT8512C YT8512H offers integrated built-in self-test and loopback capabilities for ease of use. The YT8512C YT8512H offers innovative and robust approach for reducing power consumption through EEE, Wo L and other programmable energy savings modes.
TARGET APPLICATION
- General Embedded Applications
- Video Surveillance
- Industrial Controls
- Factory Automation
Motorm YT8512C YT8512H Datasheet

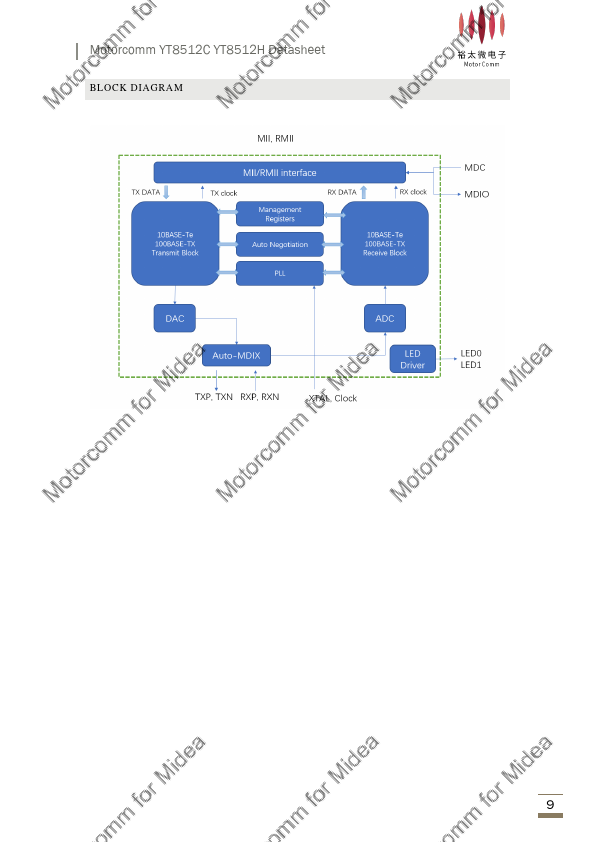

BLOCK DIAGRAM
Motorm YT8512C YT8512H Datasheet
2. FEATURE
- EEE 802.3az, EEE
- 100Base-TX
- 10Base-Te
- MII mode
- RMII mode
- Full/Half duplex
- Auto-negotiation
- Power down mode
- Base Line Wander (BLW) pensation
- Auto MDIX
- Interrupt function
- WOL, Wake on Lan
- Automatic Polarity correction
- 2 sets LED indicator
- 25 MHz crystal or OSC
- Provide 50Mhz clock source for MAC
- Single Power supply, internal LDO
- Package QFN 32, 5x 5mm
Motorm YT8512C YT8512H Datasheet
3. PIN ASSIGMENT
YT8512C YT8512H QFN32 5X5MM
Motorm YT8512C YT8512H Datasheet
PIN DESCRIPTIONS
- I = Input
- O =...
