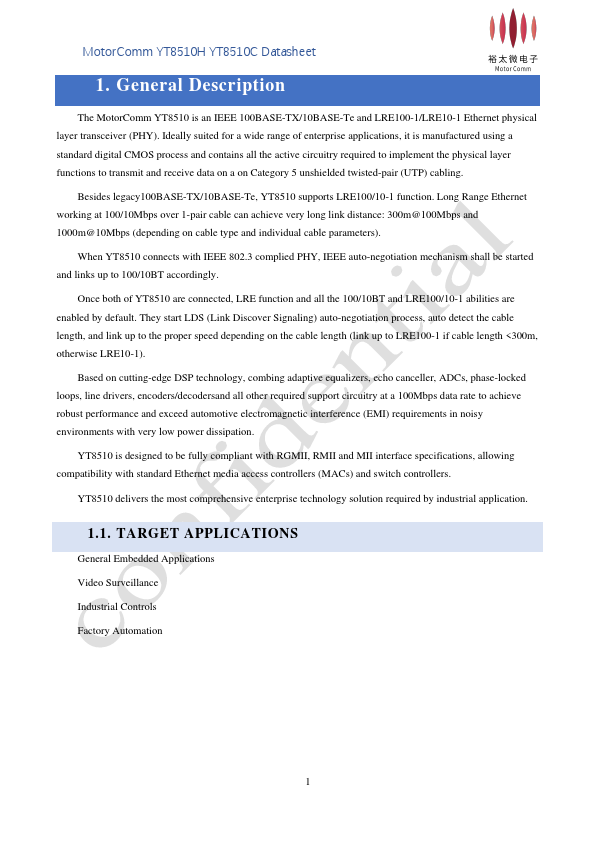

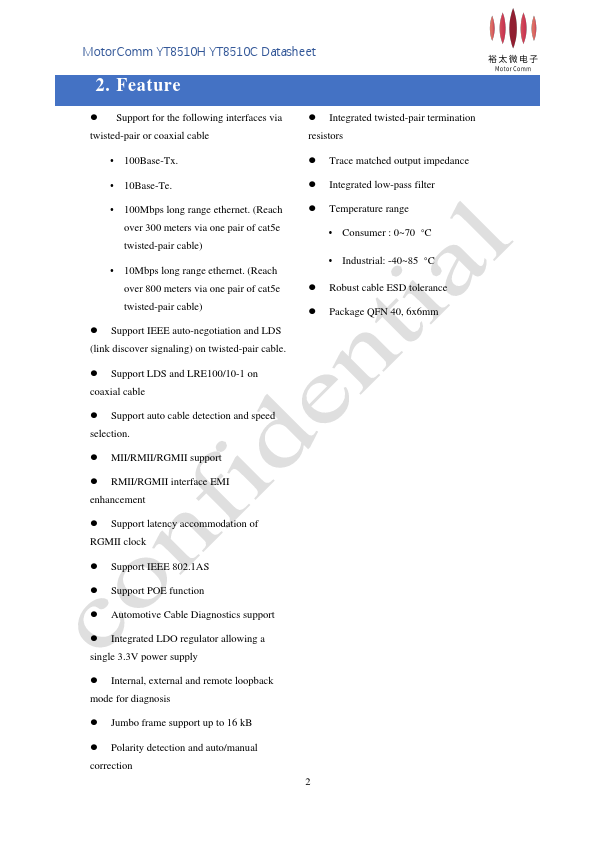

Description The Motorm YT8510 is an IEEE 100BASE-TX/10BASE-Te and LRE100-1/LRE10-1 Ethernet physical layer transceiver (PHY). Ideally suited for a wide range of enterprise applications, it is manufactured using a standard digital CMOS process and contains all the active circuitry required to implement the physical layer functions to transmit and receive data on a on Category 5 unshielded twisted-pair (UTP) cabling. Besides legacy100BASE-TX/10BASE-Te, YT8510 supports LRE100/10-1 function. Long Range Ethernet working at 100/10Mbps over 1-pair cable can achieve very long link distance: 300m@100Mbps and 1000m@10Mbps (depending on cable type and individual cable parameters). When YT8510 connects with IEEE 802.3 plied PHY, IEEE auto-negotiation mechanism shall be started and links up to 100/10BT accordingly. Once both of YT8510 are connected, LRE function and all the 100/10BT and LRE100/10-1 abilities are enabled by default. They start LDS (Link Discover Signaling) auto-negotiation process, auto detect the cable length, and link up to the proper speed depending on the cable length (link up to LRE100-1 if cable length <300m, otherwise LRE10-1). Based on cutting-edge DSP technology, bing adaptive equalizers, echo canceller, ADCs, phase-locked loops, line drivers, encoders/decodersand all other required support circuitry at a 100Mbps data rate to achieve robust performance and exceed automotive electromagnetic interference (EMI) requirements in noisy environments with very low power dissipation. YT8510 is designed to be fully pliant with RGMII, RMII and MII interface specifications, allowing patibility with standard Ethernet media access controllers (MACs) and switch controllers. YT8510 delivers the most prehensive enterprise technology solution required by industrial application. 1.1. TARGET APPLICATIONS General Embedded Applications Video Surveillance Industrial Controls Factory Automation Motorm YT8510H YT8510C Datasheet 2. Feature - Support for the following...
