Datasheet Summary

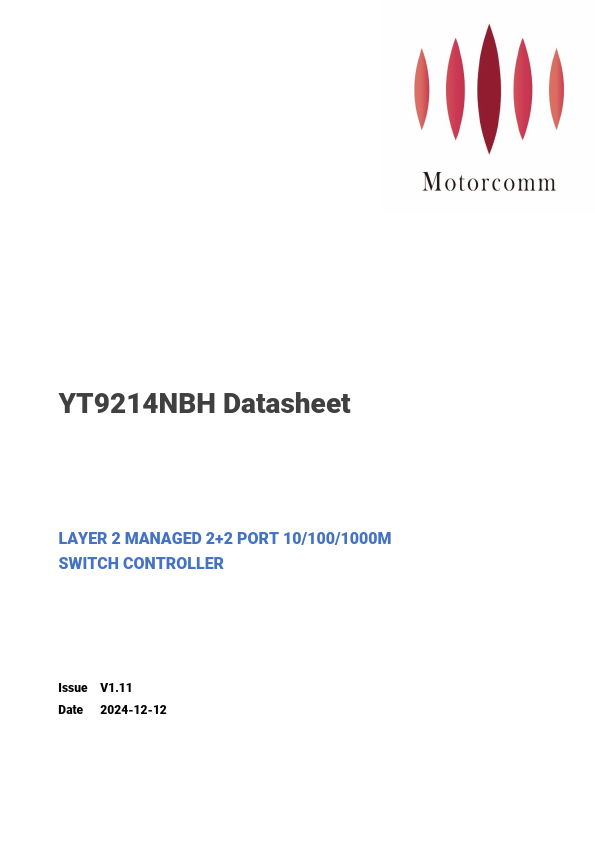

YT9214NBH Datasheet
LAYER 2 MANAGED 2+2 PORT 10/100/1000M SWITCH CONTROLLER
Issue V1.11 Date 2024-12-12

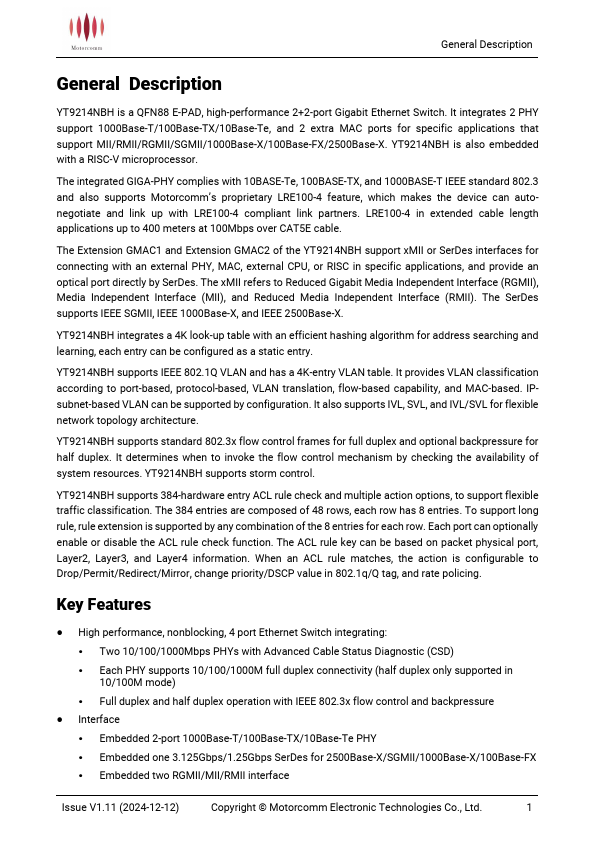

General Description
General Description
YT9214NBH is a QFN88 E-PAD, high-performance 2+2-port Gigabit Ethernet Switch. It integrates 2 PHY support 1000Base-T/100Base-TX/10Base-Te, and 2 extra MAC ports for specific applications that support MII/RMII/RGMII/SGMII/1000Base-X/100Base-FX/2500Base-X. YT9214NBH is also embedded with a RISC-V microprocessor.
The integrated GIGA-PHY plies with 10BASE-Te, 100BASE-TX, and 1000BASE-T IEEE standard 802.3 and also supports Motorm’s proprietary LRE100-4 feature, which makes the device can autonegotiate and link up with LRE100-4 pliant link...
