Datasheet Summary

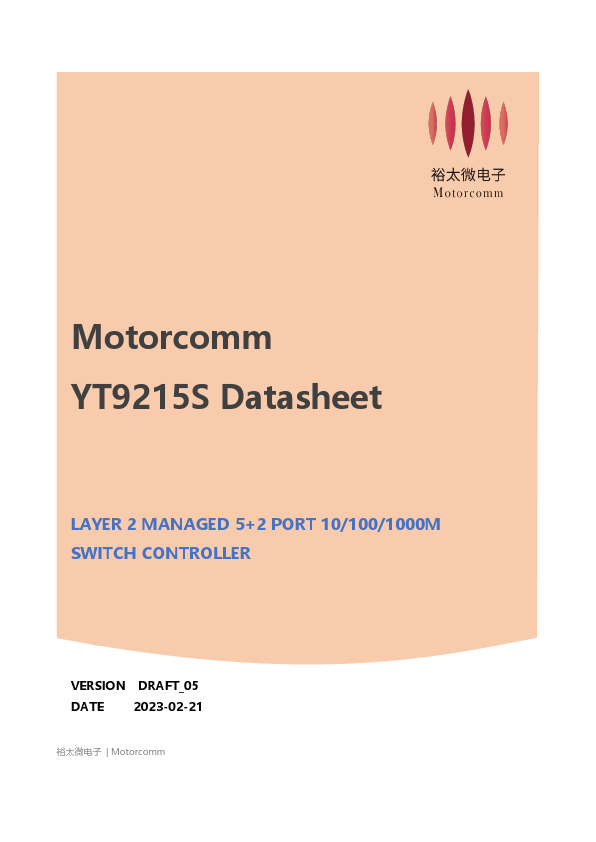

Motorm YT9215S Datasheet
LAYER 2 MANAGED 5+2 PORT 10/100/1000M SWITCH CONTROLLER
VERSION DRAFT_05 DATE 2023-02-21
裕太微电子 | Motorm
YT9215S Datasheet

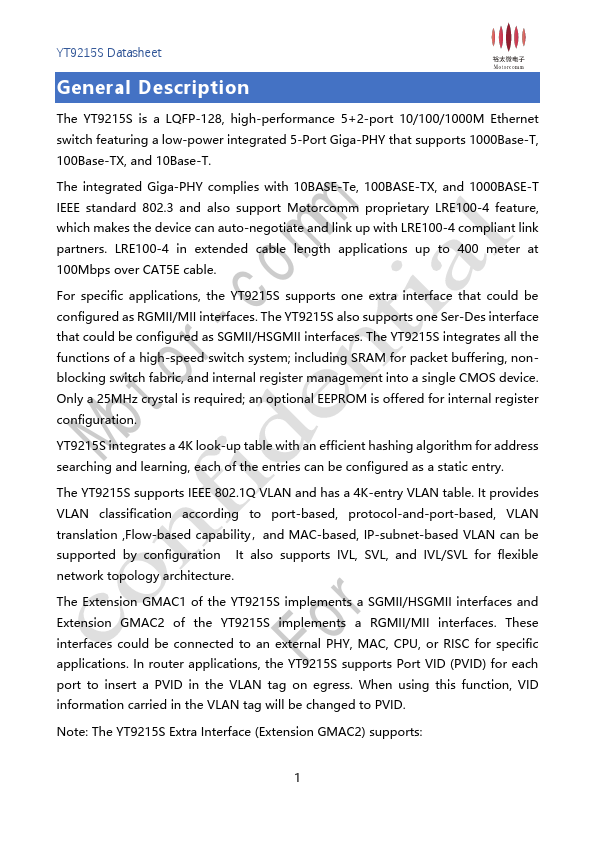

General Description
The YT9215S is a LQFP-128, high-performance 5+2-port 10/100/1000M Ethernet switch featuring a low-power integrated 5-Port Giga-PHY that supports 1000Base-T, 100Base-TX, and 10Base-T. The integrated Giga-PHY plies with 10BASE-Te, 100BASE-TX, and 1000BASE-T IEEE standard 802.3 and also support Motorm proprietary LRE100-4 feature, m which makes the device can auto-negotiate and link up with LRE100-4 pliant link partners. LRE100-4 in extended cable length applications up to 400 meter at m 100Mbps over CAT5E cable....
