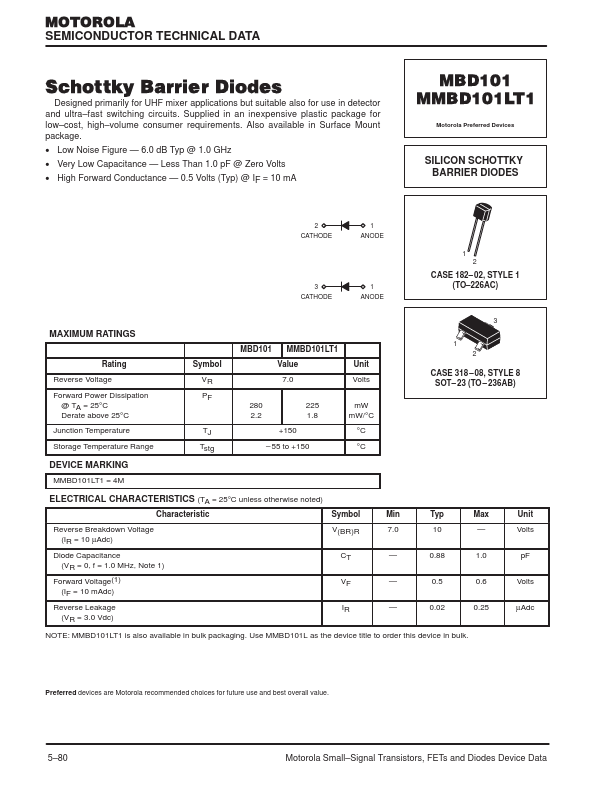

MAXIMUM RATINGS
Rating Reverse Voltage Forward Power Dissipation @ TA = 25°C Derate above 25°C Junction Temperature Storage Temperature Range DEVICE MARKING MMBD101LT1 = 4M Symbol VR PF TJ Tstg MBD101 MMBD101LT1 Value 7.0 Unit Volts 280 225 2.2 1.8 +150 – 55 to +150 mW mW/°C °C °C 3 1 2 CASE 318 – 08, STYLE 8 SOT– 23 (TO – 236AB) ELECTRICAL CHARACTERISTICS

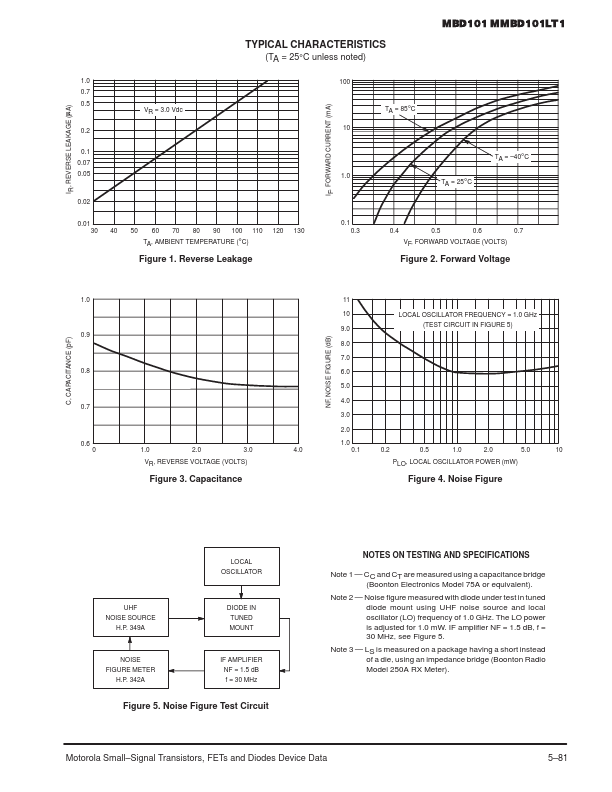

(TA = 25°C unless otherwise noted) Characteristic Symbol Min Typ Max Reverse Breakdown Voltage (IR = 10 µAdc) Diode Capacitance (VR = 0, f = 1.0 MHz, Note 1) Forward Voltage(1) (IF = 10 mAdc) Reverse Leakage (VR = 3.0 Vdc) V(BR)R 7.0 CT — VF — IR — 10 — 0.88 1.0 0.5 0.6 0.02 0.25 NOTE: MMBD101LT1 is also available in bulk packaging. Use MMBD101L as the device title to order this device in bulk. Unit Volts pF Volts µAdc Preferred devices are Motorola recommended choices for future use and best overall value. 5–80 Motorola Small–Signal Transistors, FETs and Diodes Device Data IR, REVERSE LEAKAGE (mA) MBD101 MMBD101LT1 TYPICAL CHARACTER...
