NCA1051C Description

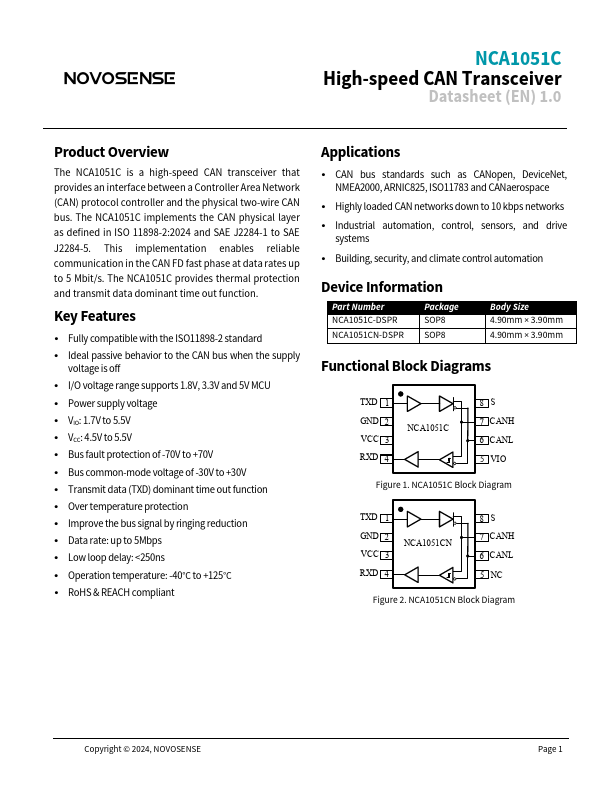

NCA1051C High-speed CAN Transceiver Datasheet (EN) 1.0 Product Overview The NCA1051C is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The NCA1051C implements the CAN physical layer as defined in ISO 11898-2:2024 and SAE J2284-1 to SAE J2284-5. This implementation enables reliable munication in the CAN FD fast...
NCA1051C Key Features
- Fully patible with the ISO11898-2 standard
- Ideal passive behavior to the CAN bus when the supply
- I/O voltage range supports 1.8V, 3.3V and 5V MCU
- Power supply voltage
- VIO: 1.7V to 5.5V
- VCC: 4.5V to 5.5V
- Bus fault protection of -70V to +70V
- Bus mon-mode voltage of -30V to +30V
- Transmit data (TXD) dominant time out function
- Over temperature protection
