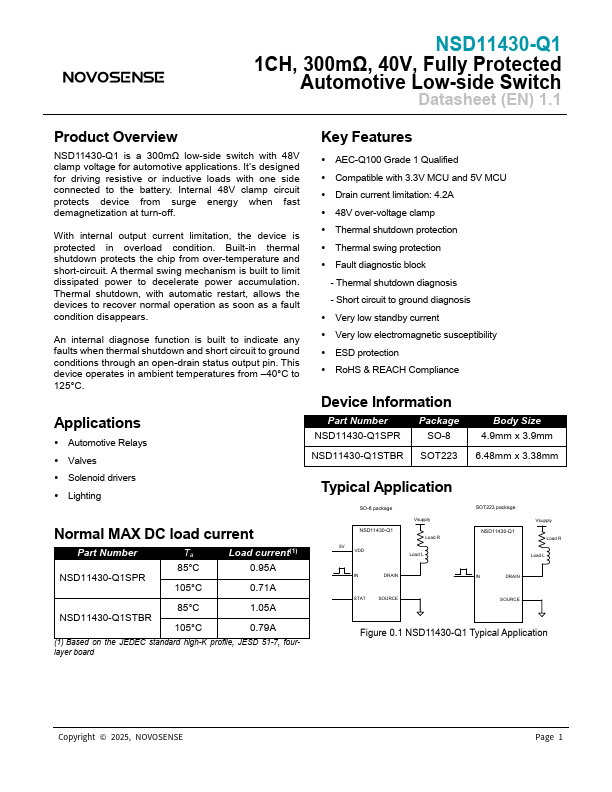

Overview NSD11430-Q1 is a 300mΩ low-side switch with 48V clamp voltage for automotive applications. It’s designed for driving resistive or inductive loads with one side connected to the battery. Internal 48V clamp circuit protects device from surge energy when fast demagnetization at turn-off. With internal output current limitation, the device is protected in overload condition. Built-in thermal shutdown protects the chip from over-temperature and short-circuit. A thermal swing mechanism is built to limit dissipated power to decelerate power accumulation. Thermal shutdown, with automatic restart, allows the devices to recover normal operation as soon as a fault condition disappears. An internal diagnose function is built to indicate any faults when thermal shutdown and short circuit to ground conditions through an open-drain status output pin. This device operates in ambient temperatures from - 40°C to 125°C. Applications - Automotive Relays - Valves - Solenoid drivers - Lighting Normal MAX DC load current Part Number Ta Load current(1) NSD11430-Q1SPR 85°C 105°C 0.95A 0.71A NSD11430-Q1STBR 85°C 105°C 1.05A 0.79A (1) Based on the JEDEC standard high-K profile, JESD 51-7, fourlayer board Key Features - AEC-Q100 Grade 1 Qualified - patible with 3.3V MCU and 5V MCU - Drain current limitation: 4.2A - 48V over-voltage clamp - Thermal shutdown protection - Thermal swing protection - Fault diagnostic block - Thermal shutdown diagnosis - Short circuit to ground diagnosis - Very low standby current - Very low electromagnetic susceptibility - ESD protection - Ro HS & REACH pliance Device Information Part Number Package NSD11430-Q1SPR SO-8...
