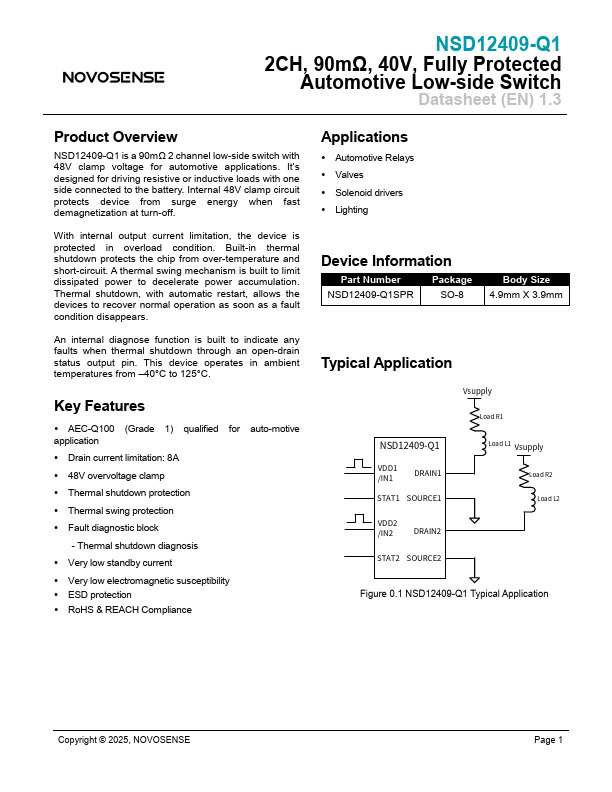

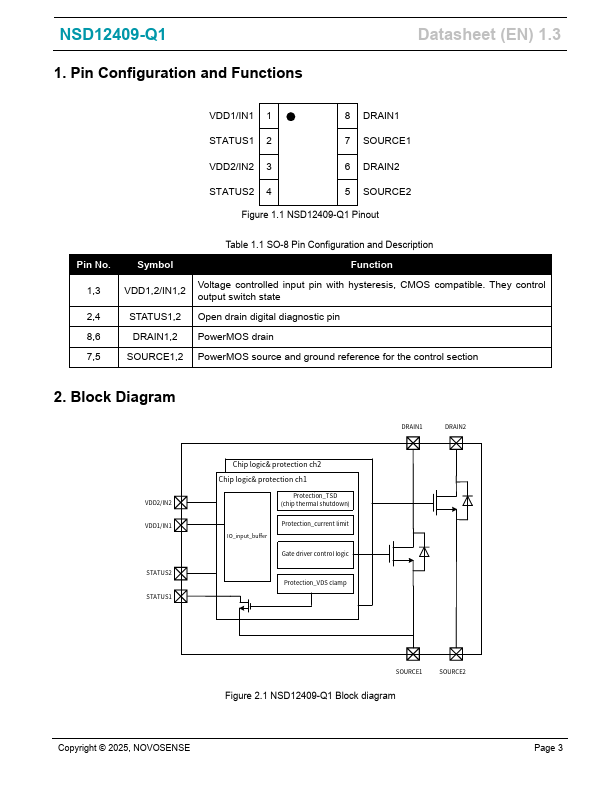

Overview NSD12409-Q1 is a 90mΩ 2 channel low-side switch with 48V clamp voltage for automotive applications. It’s designed for driving resistive or inductive loads with one side connected to the battery. Internal 48V clamp circuit protects device from surge energy when fast demagnetization at turn-off. With internal output current limitation, the device is protected in overload condition. Built-in thermal shutdown protects the chip from over-temperature and short-circuit. A thermal swing mechanism is built to limit dissipated power to decelerate power accumulation. Thermal shutdown, with automatic restart, allows the devices to recover normal operation as soon as a fault condition disappears. An internal diagnose function is built to indicate any faults when thermal shutdown through an open-drain status output pin. This device operates in ambient temperatures from - 40°C to 125°C. Key Features - AEC-Q100 (Grade 1) qualified for auto-motive application - Drain current limitation: 8A - 48V overvoltage clamp - Thermal shutdown protection - Thermal swing protection - Fault diagnostic block - Thermal shutdown diagnosis - Very low standby current - Very low electromagnetic susceptibility - ESD protection - Ro HS & REACH pliance Applications - Automotive Relays - Valves - Solenoid drivers - Lighting Device Information Part Number Package NSD12409-Q1SPR SO-8 Body Size 4.9mm X 3.9mm Typical Application Vsupply Load R1 VDD1 /IN1 DRAIN1 STAT1 SOURCE1 VDD2 /IN2 DRAIN2 STAT2 SOURCE2 Load L1 Vsupply Load R2 Load L2 Figure 0.1 NSD12409-Q1 Typical Application Copyright © 2025,...
