NSD12430A-Q1 Datasheet | NOVOSENSE

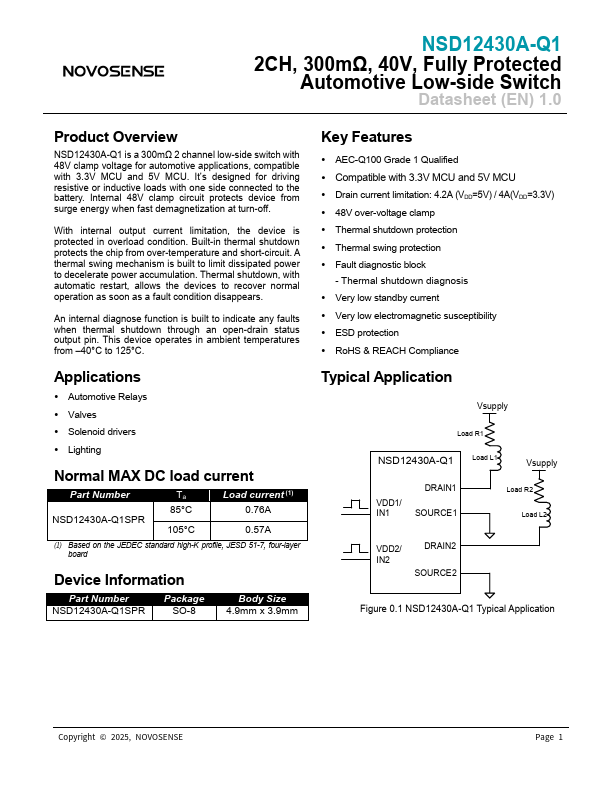

Overview NSD12430A-Q1 is a 300mΩ 2 channel low-side switch with 48V clamp voltage for automotive applications, patible with 3.3V MCU and 5V MCU. It’s designed for driving resistive or inductive loads with one side connected to the battery. Internal 48V clamp circuit protects device from surge energy when fast demagnetization at turn-off. With internal output current limitation, the device is protected in overload condition. Built-in thermal shutdown protects the chip from over-temperature and short-circuit. A thermal swing mechanism is built to limit dissipated power to decelerate power accumulation. Thermal shutdown, with automatic restart, allows the devices to recover normal operation as soon as a fault condition disappears. An internal diagnose function is built to indicate any faults when thermal shutdown through an open-drain status output pin. This device operates in ambient temperatures from - 40°C to 125°C. Applications - Automotive Relays - Valves - Solenoid drivers - Lighting Normal MAX DC load current Part Number NSD12430A-Q1SPR Ta 85°C 105°C Load current (1) 0.76A 0.57A (1) Based on the JEDEC standard high-K profile, JESD 51-7, four-layer board Device Information Part Number Package NSD12430A-Q1SPR SO-8 Body Size 4.9mm x 3.9mm Key Features - AEC-Q100 Grade 1 Qualified - patible with 3.3V MCU and 5V MCU - Drain current limitation: 4.2A (VDD=5V) / 4A(VDD=3.3V) - 48V over-voltage clamp - Thermal shutdown protection - Thermal swing protection - Fault diagnostic block - Thermal shutdown diagnosis - Very low standby current - Very low electromagnetic susceptibility - ESD protection - Ro HS & REACH pliance Typical Application Vsupply Load R1 NSD12430A-Q1 Load...
