NSD8308 Datasheet | NOVOSENSE

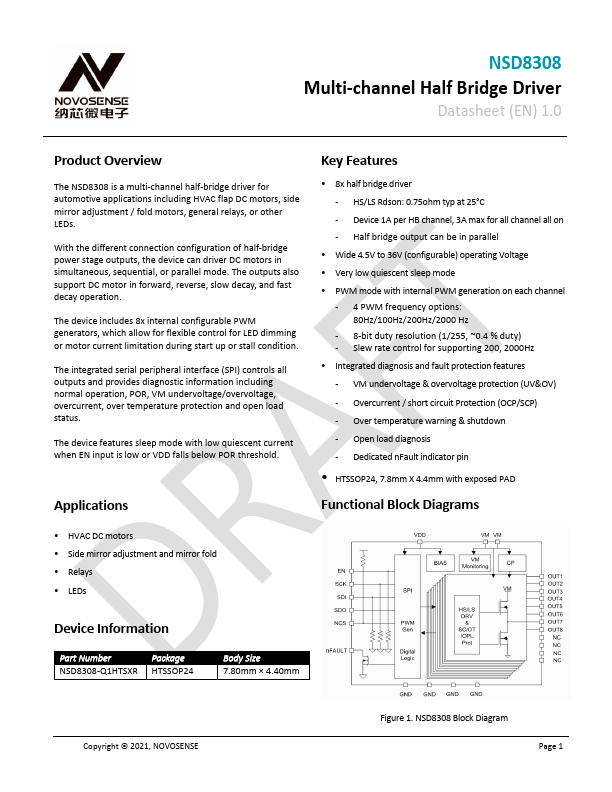

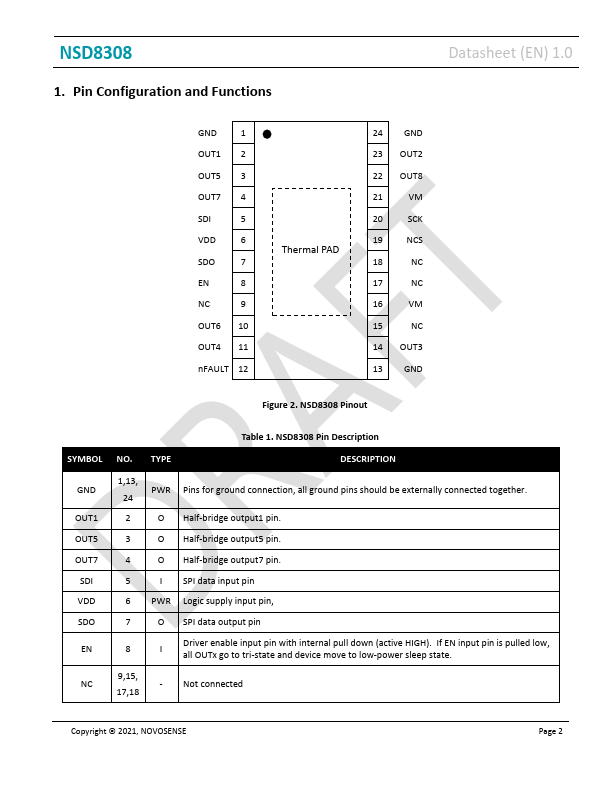

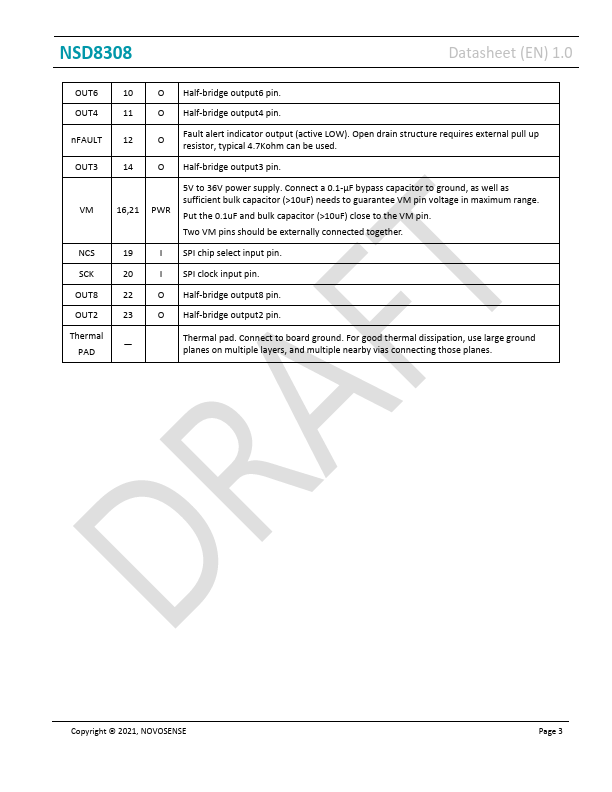

Features sleep mode with low quiescent current when EN input is low or VDD falls below POR threshold. Applications Key Features - 8x half bridge driver - HS/LS Rdson: 0.75ohm typ at 25°C - Device 1A per HB channel, 3A max for all channel all on - Half bridge output can be in parallel - Wide 4.5V to 36V (configurable) operating Voltage - Very low quiescent sleep mode - PWM mode with internal PWM generation on each channel - 4 PWM frequency options: 80Hz/100Hz/200Hz/2000 Hz - 8-bit duty resolution (1/255, ~0.4 % duty) - Slew rate control for supporting 200, 2000Hz - Integrated diagnosis and fault protection Features - VM undervoltage & overvoltage protection (UV&OV) - Overcurrent / short circuit Protection (OCP/SCP) - Over temperature warning & shutdown - Open load diagnosis - Dedicated n Fault indicator pin - HTSSOP24, 7.8mm X 4.4mm with exposed PAD Functional Block Diagrams - HVAC DC motors - Side mirror adjustment and mirror fold - Relays - LEDs Device Information Part Number Package NSD8308-Q1HTSXR HTSSOP24 Body Size 7.80mm ×...
