NSI6602M Description

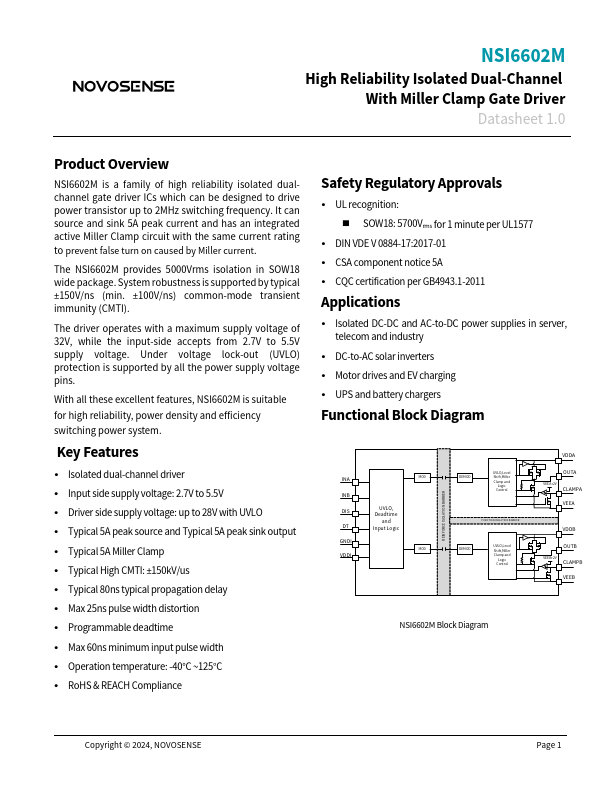

NSI6602M High Reliability Isolated Dual-Channel With Miller Clamp Gate Driver Datasheet 1.0 Product Overview NSI6602M is a family of high reliability isolated dualchannel gate driver ICs which can be designed to drive power transistor up to 2MHz switching frequency. It can source and sink 5A peak current and has an integrated active Miller Clamp circuit with the same current rating to prevent false turn on caused by...
NSI6602M Key Features
- Isolated dual-channel driver
- Input side supply voltage: 2.7V to 5.5V
- Driver side supply voltage: up to 28V with UVLO
- Typical 5A peak source and Typical 5A peak sink output
- Typical 5A Miller Clamp
- Typical High CMTI: ±150kV/us
- Typical 80ns typical propagation delay
- Max 25ns pulse width distortion
- Programmable deadtime
- Max 60ns minimum input pulse width
