NSI6602NA - High Reliability Isolated Dual-Channel Gate Driver

📥 Download Datasheet

Datasheet Details

Part number NSI6602NA
Manufacturer NOVOSENSE
File Size 2.00 MB
Description High Reliability Isolated Dual-Channel Gate Driver
Datasheet download datasheet NSI6602NA Datasheet

Overview

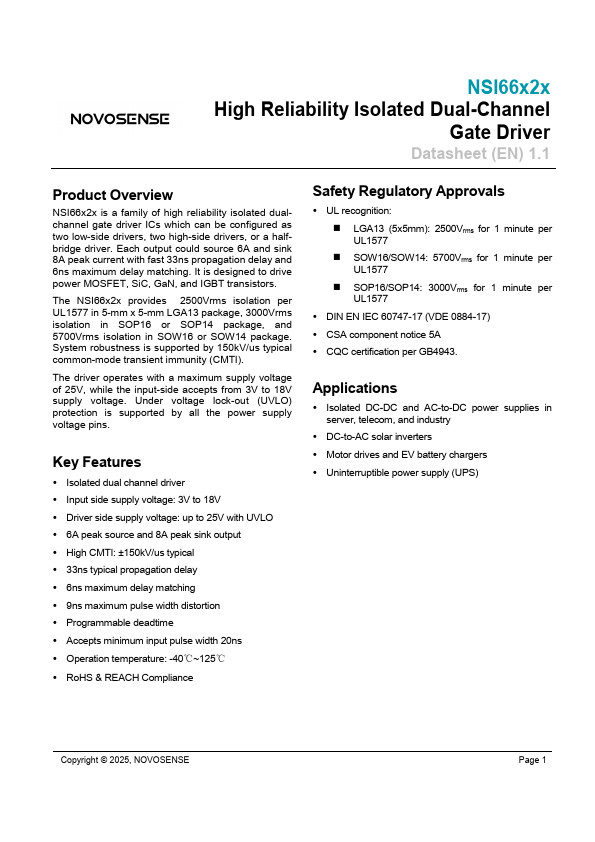

NSI66x2x High Reliability Isolated Dual-Channel Gate Driver Datasheet (EN) 1.

Key Features

  • Isolated dual channel driver.
  • Input side supply voltage: 3V to 18V.
  • Driver side supply voltage: up to 25V with UVLO.
  • 6A peak source and 8A peak sink output.
  • High CMTI: ±150kV/us typical.
  • 33ns typical propagation delay.
  • 6ns maximum delay matching.
  • 9ns maximum pulse width distortion.
  • Programmable deadtime.
  • Accepts minimum input pulse width 20ns.
  • Operation temperature: -40℃~125℃.
  • RoHS & REACH Compliance Safety Regulatory Approvals.
