NSI6602NB Overview

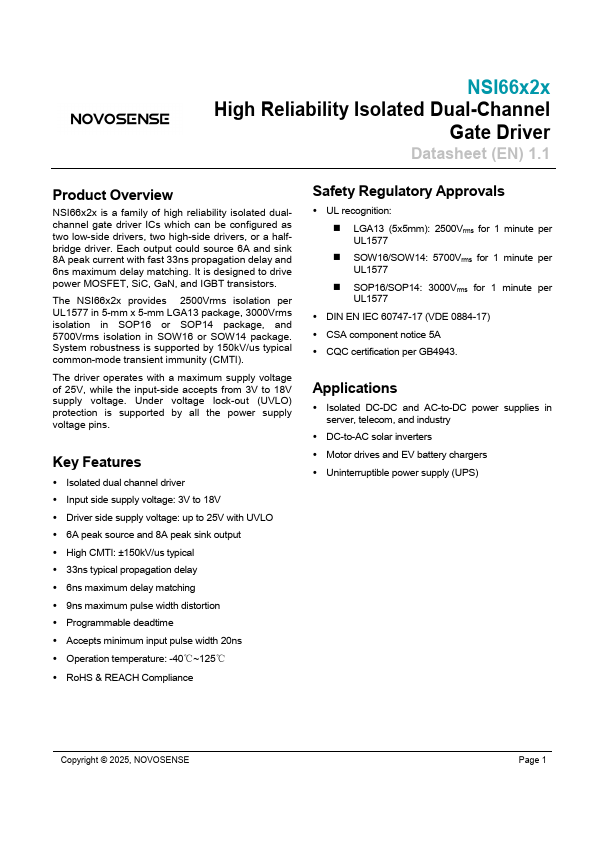

NSI66x2x High Reliability Isolated Dual-Channel Gate Driver Datasheet (EN) 1.1 Product Overview NSI66x2x is a family of high reliability isolated dualchannel gate driver ICs which can be configured as two low-side drivers, two high-side drivers, or a halfbridge driver. Each output could source 6A and sink 8A peak current with fast 33ns propagation delay and 6ns maximum delay matching. It is designed to drive power...
NSI6602NB Key Features
- Isolated dual channel driver
- Input side supply voltage: 3V to 18V
- Driver side supply voltage: up to 25V with UVLO
- 6A peak source and 8A peak sink output
- High CMTI: ±150kV/us typical
- 33ns typical propagation delay
- 6ns maximum delay matching
- 9ns maximum pulse width distortion
- Programmable deadtime
- Accepts minimum input pulse width 20ns
