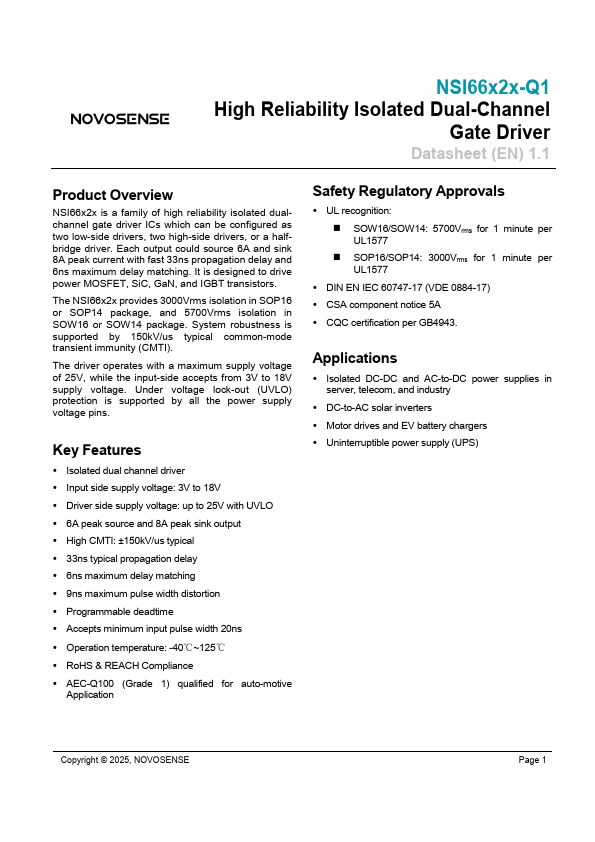

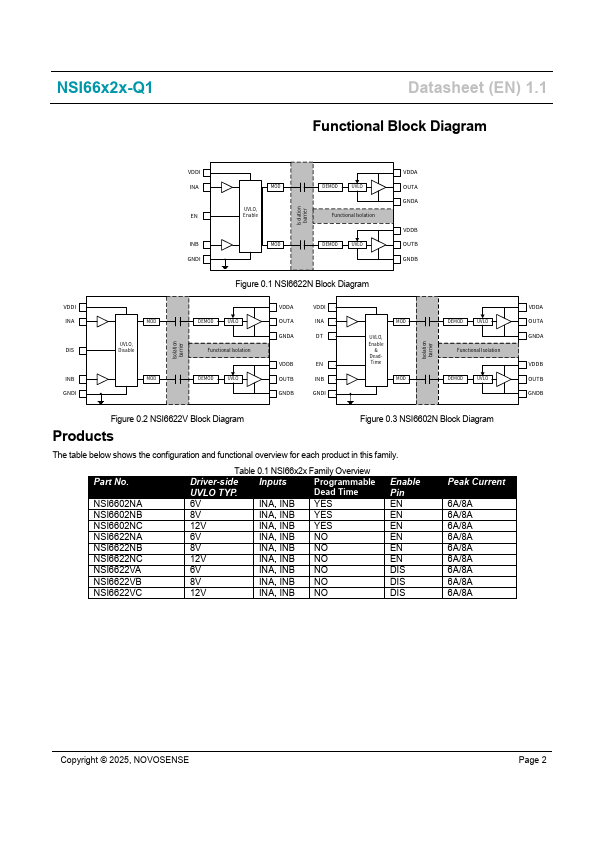

NSI66x2x-Q1 High Reliability Isolated Dual-Channel Gate Driver Datasheet (EN) 1.1 Product Overview NSI66x2x is a family of high reliability isolated dualchannel gate driver ICs which can be configured as two low-side drivers, two high-side drivers, or a halfbridge driver. Each output could source 6A and sink 8A peak current with fast 33ns propagation delay and 6ns maximum delay matching. It is designed to drive power MOSFET, Si C, Ga N, and IGBT transistors. The NSI66x2x provides 3000Vrms isolation in SOP16 or SOP14 package, and 5700Vrms isolation in SOW16 or SOW14 package. System robustness is supported by 150k V/us typical mon-mode transient immunity (CMTI). The driver operates with a maximum supply voltage of 25V, while the input-side accepts from 3V to 18V supply voltage. Under voltage lock-out (UVLO) protection is supported by all the power supply voltage pins. Key Features - Isolated dual channel driver - Input side supply voltage: 3V to 18V - Driver side supply voltage: up to 25V with UVLO - 6A peak source and 8A peak sink output - High CMTI: ±150k V/us typical - 33ns typical propagation delay - 6ns maximum delay matching - 9ns maximum pulse width distortion - Programmable deadtime - Accepts minimum input pulse width 20ns - Operation temperature: -40℃~125℃ - Ro HS & REACH pliance - AEC-Q100 (Grade 1) qualified for auto-motive Application Safety Regulatory Approvals - UL recognition: - SOW16/SOW14: 5700Vrms for 1 minute per UL1577 - SOP16/SOP14: 3000Vrms for 1 minute per UL1577 - DIN EN IEC 60747-17 (VDE 0884-17) - CSA ponent notice 5A - CQC certification per GB4943. Applications - Isolated DC-DC and AC-to-DC power supplies in server, tele, and...
