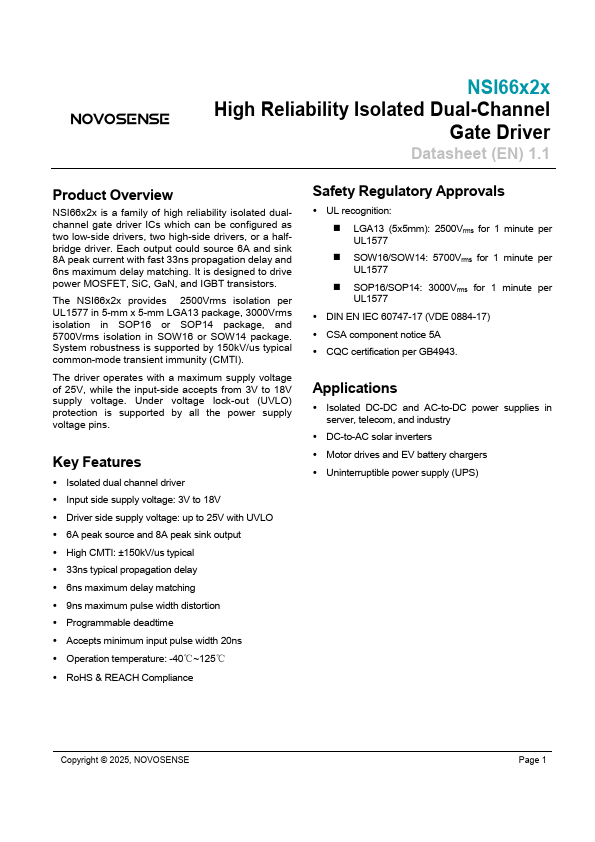

NSI6602ND
NSI6602ND is High Reliability Isolated Dual-Channel Gate Driver manufactured by NOVOSENSE.
- Part of the NSI6602NA comparator family.
- Part of the NSI6602NA comparator family.
Features
- Isolated dual channel driver
- Input side supply voltage: 3V to 18V
- Driver side supply voltage: up to 25V with UVLO
- 6A peak source and 8A peak sink output
- High CMTI: ±150k V/us typical
- 33ns typical propagation delay
- 6ns maximum delay matching
- 9ns maximum pulse width distortion
- Programmable deadtime
- Accepts minimum input pulse width 20ns
- Operation temperature: -40℃~125℃
- Ro HS & REACH pliance
Safety Regulatory Approvals
- UL recognition:
- LGA13 (5x5mm): 2500Vrms for 1 minute per UL1577
- SOW16/SOW14: 5700Vrms for 1 minute per UL1577
- SOP16/SOP14: 3000Vrms for 1 minute per UL1577
- DIN EN IEC 60747-17 (VDE 0884-17)
- CSA ponent notice 5A
- CQC certification per GB4943.
Applications
- Isolated DC-DC and AC-to-DC power supplies in server, tele, and industry
- DC-to-AC solar inverters
- Motor drives and EV battery chargers
- Uninterruptible power supply (UPS)
Copyright © 2025, NOVOSENSE
Page 1
NSI66x2x

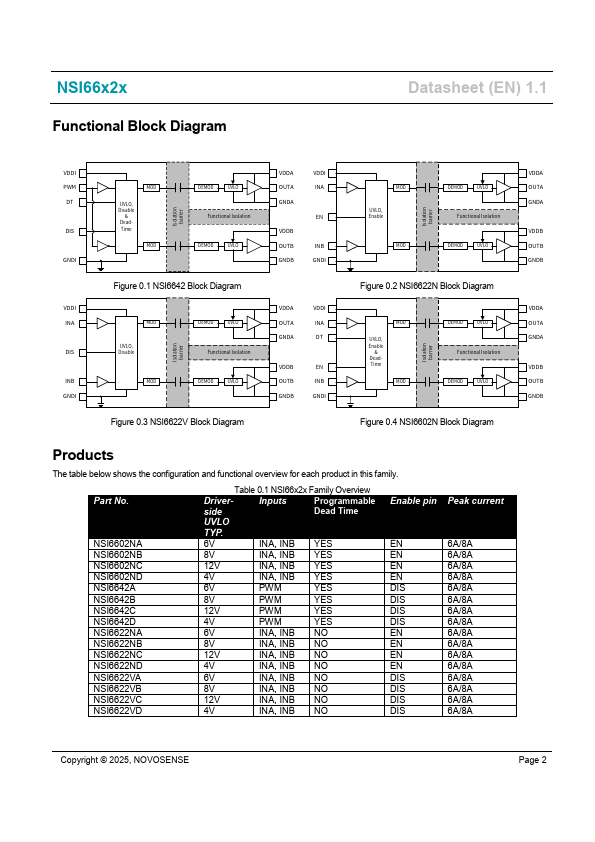

Functional Block...
