NSI6622NA-Q1 Datasheet High Reliability Isolated Dual-Channel Gate Driver

Manufacturer: NOVOSENSE

Download the NSI6622NA-Q1 datasheet PDF. This datasheet also includes the NSI6602NA-Q1 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

NSI6622NA-Q1 high reliability isolated dual-channel gate driver by NOVOSENSE - Datasheet Preview — Note: The manufacturer provides a single datasheet file (NSI6602NA-Q1-NOVOSENSE.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	NSI6622NA-Q1
Manufacturer	NOVOSENSE
File Size	1.70 MB
Description	High Reliability Isolated Dual-Channel Gate Driver
Download	NSI6622NA-Q1 Download (PDF)

Overview

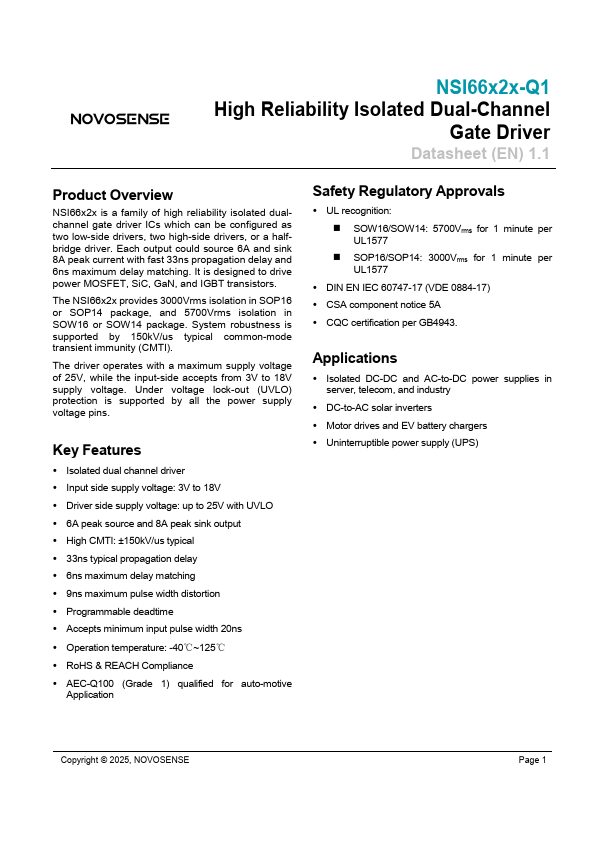

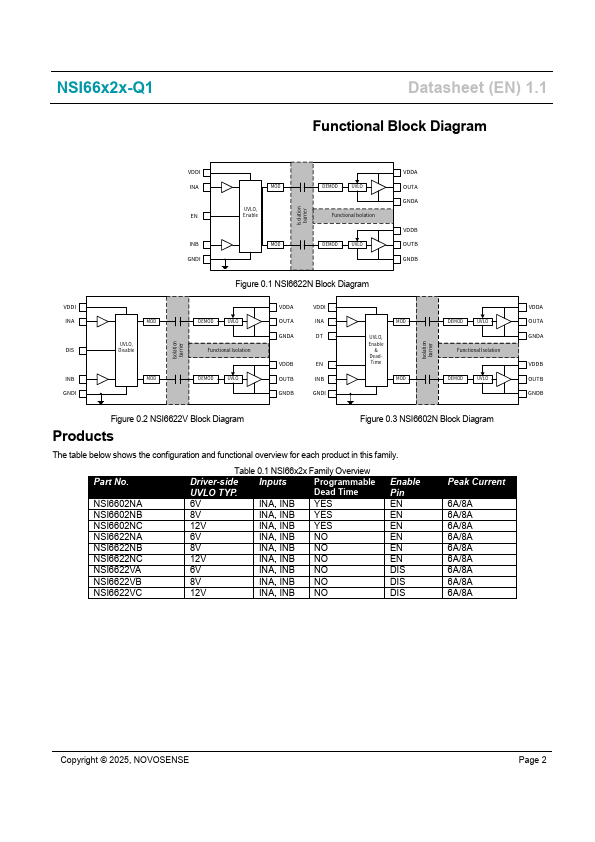

NSI66x2x-Q1 High Reliability Isolated Dual-Channel Gate Driver Datasheet (EN) 1.1 Product Overview NSI66x2x is a family of high reliability isolated dualchannel gate driver ICs which can be configured as two low-side drivers, two high-side drivers, or a halfbridge driver.

Each output could source 6A and sink 8A peak current with fast 33ns propagation delay and 6ns maximum delay matching.

It is designed to drive power MOSFET, SiC, GaN, and IGBT transistors.

Key Features

Isolated dual channel driver.
Input side supply voltage: 3V to 18V.
Driver side supply voltage: up to 25V with UVLO.
6A peak source and 8A peak sink output.
High CMTI: ±150kV/us typical.
33ns typical propagation delay.
6ns maximum delay matching.
9ns maximum pulse width distortion.
Programmable deadtime.
Accepts minimum input pulse width 20ns.
Operation temperature: -40℃~125℃.
RoHS & REACH Compliance.
AEC-Q100 (Grade 1) qualified.

More Datasheets from NOVOSENSE

Part Number	Description
NSI6622NA	High Reliability Isolated Dual-Channel Gate Driver
NSI6622NB	High Reliability Isolated Dual-Channel Gate Driver
NSI6622NB-Q1	High Reliability Isolated Dual-Channel Gate Driver
NSI6622NC	High Reliability Isolated Dual-Channel Gate Driver
NSI6622NC-Q1	High Reliability Isolated Dual-Channel Gate Driver
NSI6622ND	High Reliability Isolated Dual-Channel Gate Driver
NSI6622VA	High Reliability Isolated Dual-Channel Gate Driver
NSI6622VA-Q1	High Reliability Isolated Dual-Channel Gate Driver
NSI6622VB	High Reliability Isolated Dual-Channel Gate Driver
NSI6622VB-Q1	High Reliability Isolated Dual-Channel Gate Driver
