NSI7210-DSPAR Description

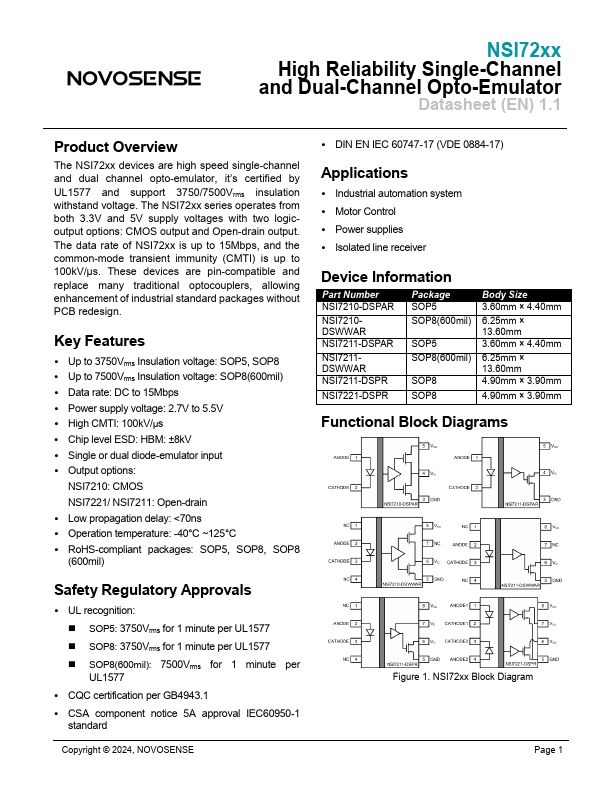

NSI72xx High Reliability Single-Channel and Dual-Channel Opto-Emulator Datasheet (EN) 1.1 Product Overview The NSI72xx devices are high speed single-channel and dual channel opto-emulator, it’s certified by UL1577 and support 3750/7500Vrms insulation withstand voltage. The NSI72xx series operates from both 3.3V and 5V supply voltages with two logicoutput options: CMOS output and Open-drain output.
NSI7210-DSPAR Key Features
- Up to 3750Vrms Insulation voltage: SOP5, SOP8
- Up to 7500Vrms Insulation voltage: SOP8(600mil)
- Data rate: DC to 15Mbps
- Power supply voltage: 2.7V to 5.5V
- High CMTI: 100kV/μs
- Chip level ESD: HBM: ±8kV
- Single or dual diode-emulator input
- Output options
- Low propagation delay: <70ns
- Operation temperature: -40°C ~125°C
