NSI7211-DSPR Datasheet High Reliability Single-Channel and Dual-Channel Opto-Emulator

Manufacturer: NOVOSENSE

Download the NSI7211-DSPR datasheet PDF. This datasheet also includes the NSI7210-DSPAR variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NSI7210-DSPAR-NOVOSENSE.pdf) that lists specifications for multiple related part numbers.

Overview

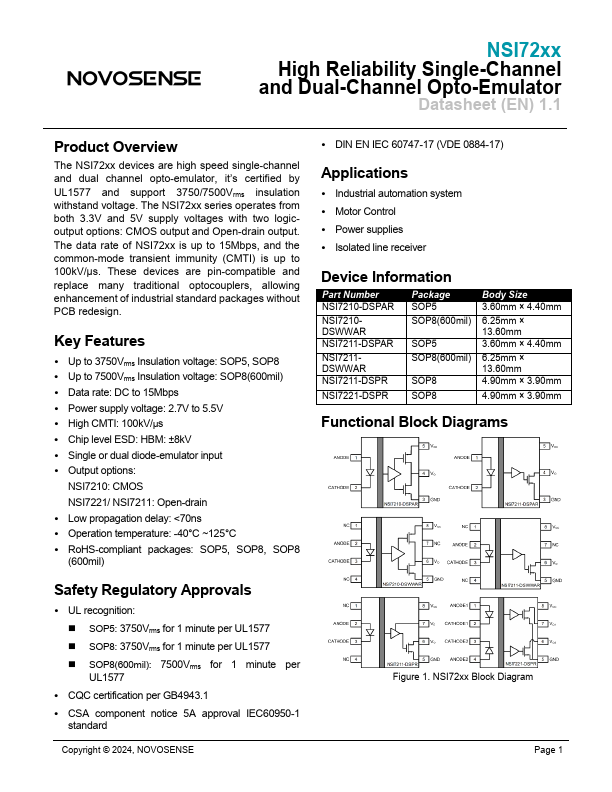

NSI72xx High Reliability Single-Channel and Dual-Channel Opto-Emulator Datasheet (EN) 1.1 Product Overview The NSI72xx devices are high speed single-channel and dual channel opto-emulator, it’s certified by UL1577 and support 3750/7500Vrms insulation withstand voltage.

The NSI72xx series operates from both 3.3V and 5V supply voltages with two logicoutput options: CMOS output and Open-drain output.

The data rate of NSI72xx is up to 15Mbps, and the common-mode transient immunity (CMTI) is up to 100kV/μs.

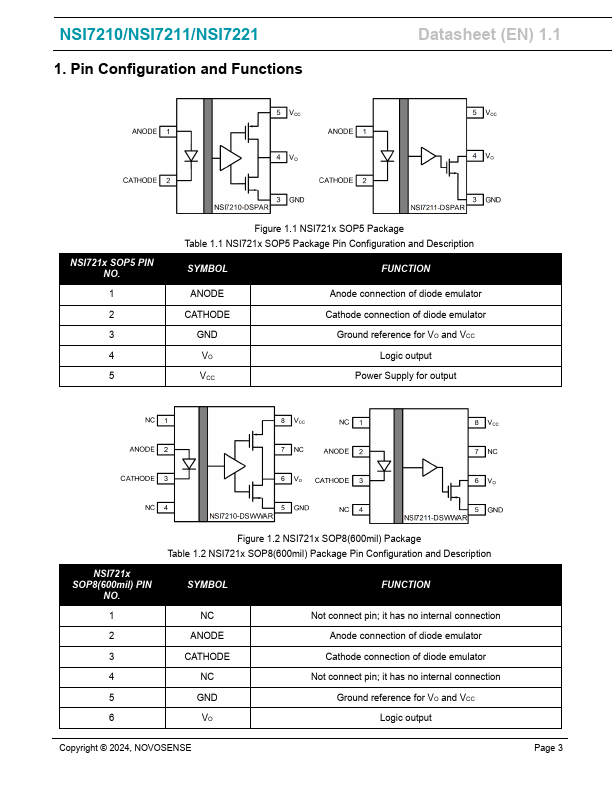

Key Features

  • Up to 3750Vrms Insulation voltage: SOP5, SOP8.
  • Up to 7500Vrms Insulation voltage: SOP8(600mil).
  • Data rate: DC to 15Mbps.
  • Power supply voltage: 2.7V to 5.5V.
  • High CMTI: 100kV/μs.
  • Chip level ESD: HBM: ±8kV.
  • Single or dual diode-emulator input.
  • Output options: NSI7210: CMOS NSI7221/ NSI7211: Open-drain.
  • Low propagation delay:.
