NSI7210-DSWWAR Datasheet High Reliability Single-channel And Dual-channel Opto-emulator

Manufacturer: NOVOSENSE

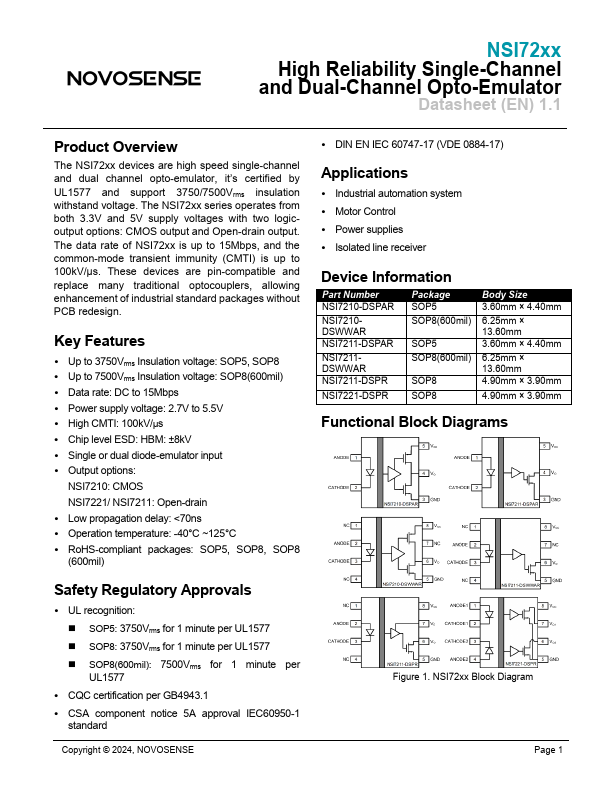

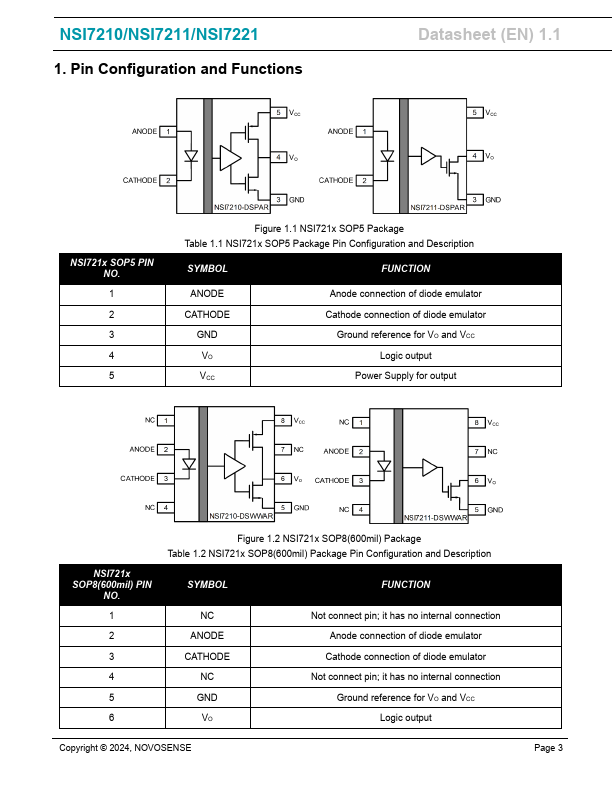

Overview: NSI72xx High Reliability Single-Channel and Dual-Channel Opto-Emulator Datasheet (EN) 1.1 Product Overview The NSI72xx devices are high speed single-channel and dual channel opto-emulator, it’s certified by UL1577 and support 3750/7500Vrms insulation withstand voltage. The NSI72xx series operates from both 3.3V and 5V supply voltages with two logicoutput options: CMOS output and Open-drain output. The data rate of NSI72xx is up to 15Mbps, and the common-mode transient immunity (CMTI) is up to 100kV/μs. These devices are pin-compatible and replace many traditional optocouplers, allowing enhancement of industrial standard packages without PCB redesign.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Key Features

  • Up to 3750Vrms Insulation voltage: SOP5, SOP8.
  • Up to 7500Vrms Insulation voltage: SOP8(600mil).
  • Data rate: DC to 15Mbps.
  • Power supply voltage: 2.7V to 5.5V.
  • High CMTI: 100kV/μs.
  • Chip level ESD: HBM: ±8kV.
  • Single or dual diode-emulator input.
  • Output options: NSI7210: CMOS NSI7221/ NSI7211: Open-drain.
  • Low propagation delay:.
