NSM1051 Description

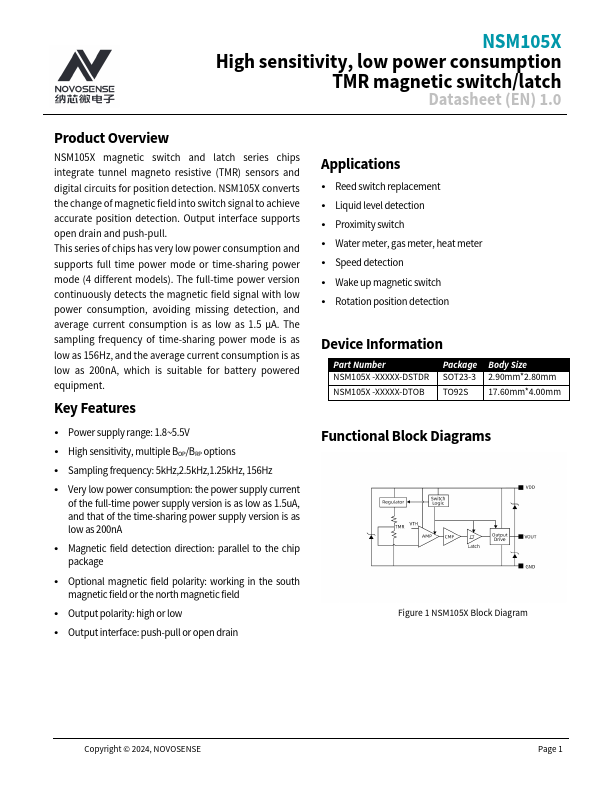

NSM105X High sensitivity, low power consumption TMR magnetic switch/latch Datasheet (EN) 1.0 Product Overview NSM105X magnetic switch and latch series chips integrate tunnel magneto resistive (TMR) sensors and digital circuits for position detection. NSM105X converts the change of magnetic field into switch signal to achieve accurate position detection. Output interface supports open drain and push-pull.
NSM1051 Key Features
- Power supply range: 1.8~5.5V
- High sensitivity, multiple BOP/BRP options
- Sampling frequency: 5kHz,2.5kHz,1.25kHz, 156Hz
- Very low power consumption: the power supply current of the full-time power supply version is as low as 1.5uA, and that
- Magnetic field detection direction: parallel to the chip package
- Optional magnetic field polarity: working in the south magnetic field or the north magnetic field
- Output polarity: high or low
- Output interface: push-pull or open drain
