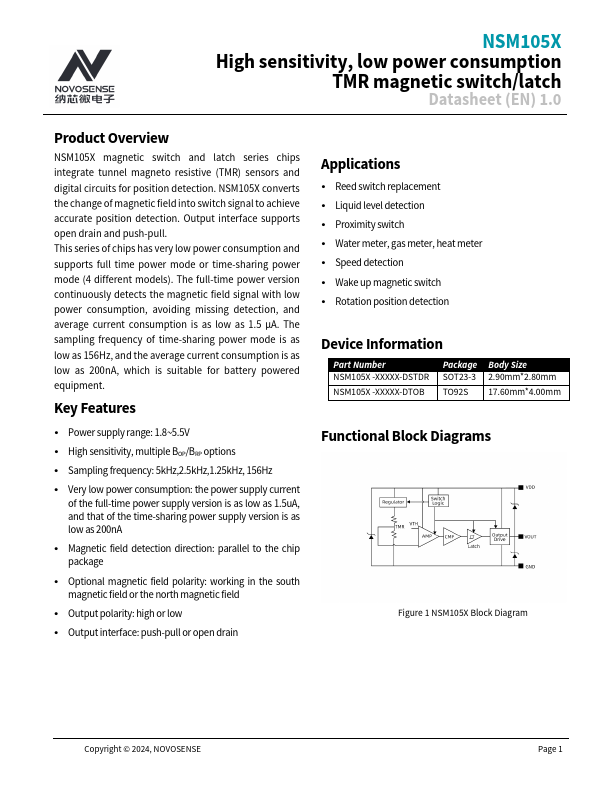

NSM105X High sensitivity, low power consumption TMR magnetic switch/latch Datasheet (EN) 1.0 Product Overview NSM105X magnetic switch and latch series chips integrate tunnel magneto resistive (TMR) sensors and digital circuits for position detection. NSM105X converts the change of magnetic field into switch signal to achieve accurate position detection. Output interface supports open drain and push-pull. This series of chips has very low power consumption and supports full time power mode or time-sharing power mode (4 different models). The full-time power version continuously detects the magnetic field signal with low power consumption, avoiding missing detection, and average current consumption is as low as 1.5 μA. The sampling frequency of time-sharing power mode is as low as 156Hz, and the average current consumption is as low as 200n A, which is suitable for battery powered equipment. Key Features - Power supply range: 1.8~5.5V - High sensitivity, multiple BOP/BRP options - Sampling frequency: 5k Hz,2.5k Hz,1.25k Hz, 156Hz - Very low power consumption: the power supply current of the full-time power supply version is as low as 1.5u A, and that of the time-sharing power supply version is as low as 200n A - Magnetic field detection direction: parallel to the chip package - Optional magnetic field polarity: working in the south magnetic field or the north magnetic field - Output polarity: high or low - Output interface: push-pull or open drain Applications - Reed switch replacement - Liquid level detection - Proximity switch - Water meter, gas meter, heat meter - Speed detection - Wake up magnetic switch - Rotation position detection Device Information Part Number NSM105X -XXXXX-DSTDR NSM105X -XXXXX-DTOB Package SOT23-3 TO92S Body Size 2.90mm- 2.80mm 17.60mm-...
