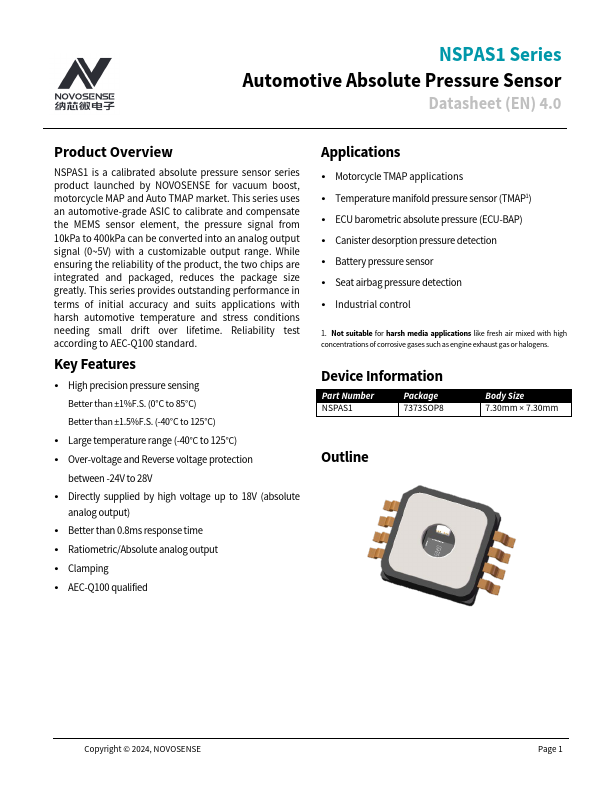

NSPAS1N115RR01
NSPAS1N115RR01 is Automotive Absolute Pressure Sensor manufactured by NOVOSENSE.
- Part of the NSPAS1 comparator family.
- Part of the NSPAS1 comparator family.
Features
- High precision pressure sensing
Better than ±1%F.S. (0°C to 85°C)
Better than ±1.5%F.S. (-40°C to 125°C)
- Large temperature range (-40°C to 125°C)
- Over-voltage and Reverse voltage protection between -24V to 28V
- Directly supplied by high voltage up to 18V (absolute analog output)
- Better than 0.8ms response time
- Ratiometric/Absolute analog output
- Clamping
- AEC-Q100 qualified
Applications
- Motorcycle TMAP applications
- Temperature manifold pressure sensor (TMAP1)
- ECU barometric absolute pressure (ECU-BAP)
- Canister desorption pressure detection
- Battery pressure sensor
- Seat airbag pressure detection
- Industrial control
1. Not suitable for harsh media applications like fresh air mixed with high concentrations of corrosive gases such as engine exhaust gas or halogens.
Device Information
Part Number NSPAS1
Package 7373SOP8
Body Size 7.30mm × 7.30mm
Outline
Copyright © 2024, NOVOSENSE
Page 1
NSPAS1 Series
Datasheet (EN)...
