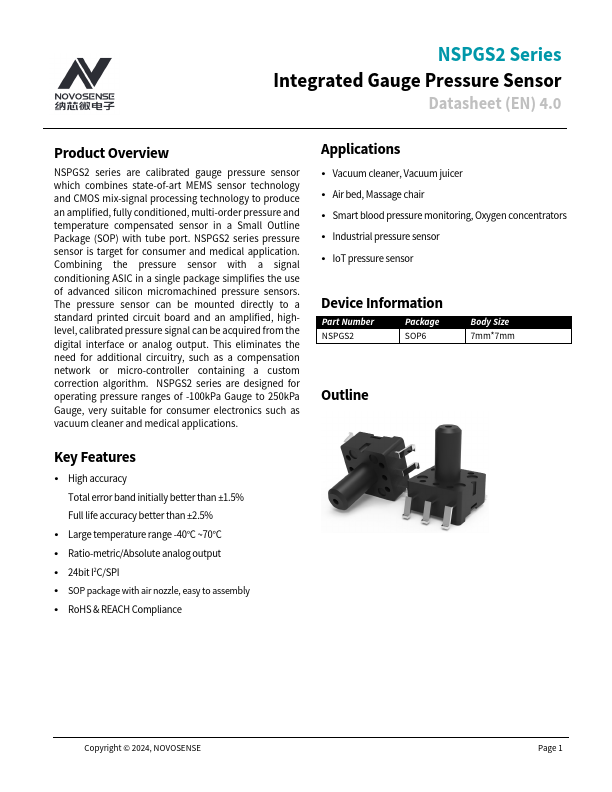

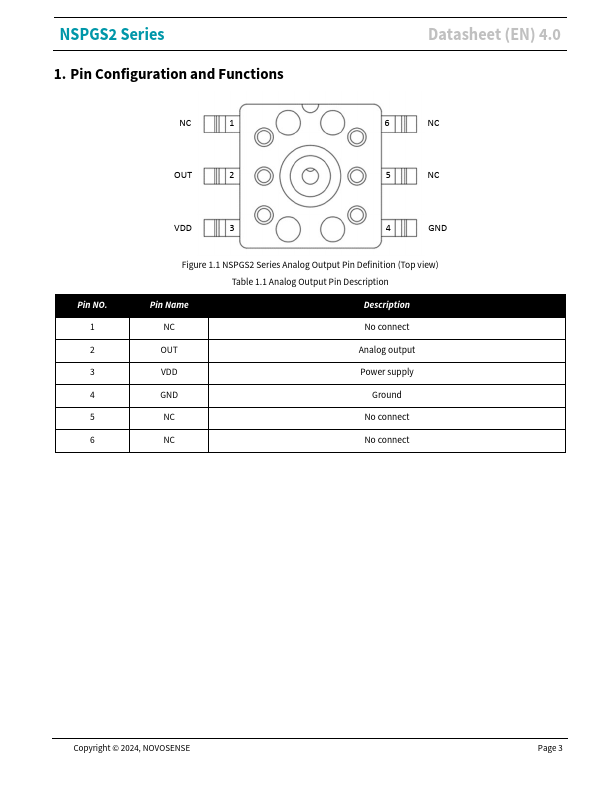

NSPGS2 Series Integrated Gauge Pressure Sensor Datasheet (EN) 4.0 Product Overview NSPGS2 series are calibrated gauge pressure sensor which bines state-of-art MEMS sensor technology and CMOS mix-signal processing technology to produce an amplified, fully conditioned, multi-order pressure and temperature pensated sensor in a Small Outline Package (SOP) with tube port. NSPGS2 series pressure sensor is target for consumer and medical application. bining the pressure sensor with a signal conditioning ASIC in a single package simplifies the use of advanced silicon micromachined pressure sensors. The pressure sensor can be mounted directly to a standard printed circuit board and an amplified, highlevel, calibrated pressure signal can be acquired from the digital interface or analog output. This eliminates the need for additional circuitry, such as a pensation network or micro-controller containing a custom correction algorithm. NSPGS2 series are designed for operating pressure ranges of -100k Pa Gauge to 250k Pa Gauge, very suitable for consumer electronics such as vacuum cleaner and medical applications. Applications - Vacuum cleaner, Vacuum juicer - Air bed, Massage chair - Smart blood pressure monitoring, Oxygen concentrators - Industrial pressure sensor - Io T pressure sensor Device Information Part Number NSPGS2 Package SOP6 Body Size 7mm- 7mm Outline Key Features - High accuracy Total error band initially better than ±1.5% Full life accuracy better than ±2.5% - Large temperature range -40°C ~70°C - Ratio-metric/Absolute analog output - 24bit I2C/SPI - SOP package with air nozzle, easy to assembly - Ro HS & REACH pliance Copyright © 2024, NOVOSENSE Page 1 NSPGS2 Series Datasheet (EN) 4.0 INDEX 1. PIN CONFIGURATION AND FUNCTIONS ..................................................................................................................................... 3 2....
