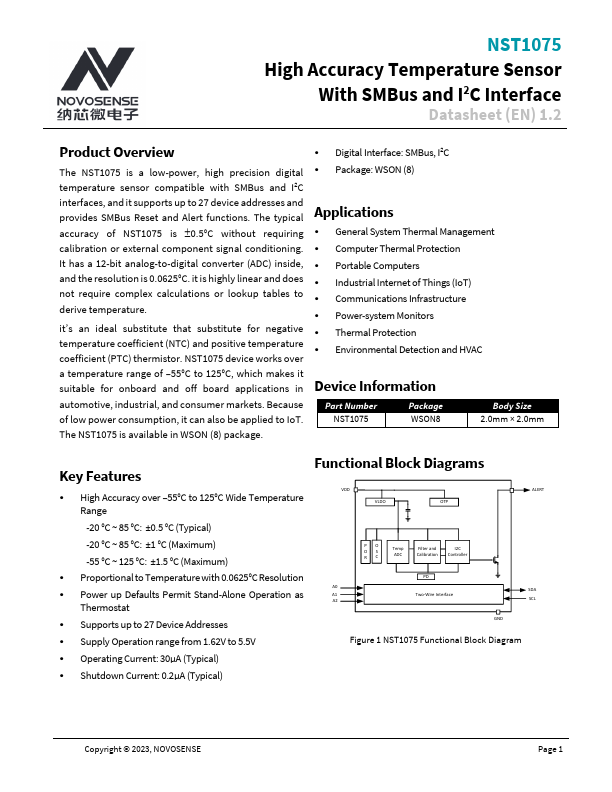

NST1075
NST1075 is High Accuracy Temperature Sensor manufactured by NOVOSENSE.
High Accuracy Temperature Sensor With SMBus and I2C Interface
Datasheet (EN) 1.2
Product Overview
The NST1075 is a low-power, high precision digital temperature sensor patible with SMBus and I2C interfaces, and it supports up to 27 device addresses and provides SMBus Reset and Alert functions. The typical accuracy of NST1075 is 0.5°C without requiring calibration or external ponent signal conditioning. It has a 12-bit analog-to-digital converter (ADC) inside, and the resolution is 0.0625°C. it is highly linear and does not require plex calculations or lookup tables to derive temperature. it’s an ideal substitute that substitute for negative temperature coefficient (NTC) and positive temperature coefficient (PTC) thermistor. NST1075 device works over a temperature range of
- 55°C to 125°C, which makes it suitable for onboard and off board applications in automotive, industrial, and consumer markets. Because of low power consumption, it can also be applied to Io T. The NST1075 is available in WSON (8) package.
- Digital Interface: SMBus, I2C
- Package: WSON (8)
Applications
- General System Thermal Management
- puter Thermal Protection
- Portable puters
- Industrial Internet of Things (Io T)
- munications Infrastructure
- Power-system Monitors
- Thermal Protection
- Environmental Detection and HVAC
Device Information
Part Number NST1075
Package WSON8
Body Size 2.0mm × 2.0mm
Key Features
- High Accuracy over
- 55°C to 125°C Wide Temperature Range -20 °C ~ 85 °C: ±0.5 °C (Typical) -20 °C ~ 85 °C: ±1 °C (Maximum) -55 °C ~ 125 °C: ±1.5 °C (Maximum)
- Proportional to Temperature with 0.0625°C Resolution
- Power up Defaults Permit Stand-Alone Operation as
Thermostat
- Supports up to 27 Device Addresses
- Supply Operation range from 1.62V to 5.5V
- Operating Current: 30μA (Typical)
- Shutdown Current: 0.2μA...
