NST112
NST112 is Low-Power Temperature Sensor manufactured by NOVOSENSE.

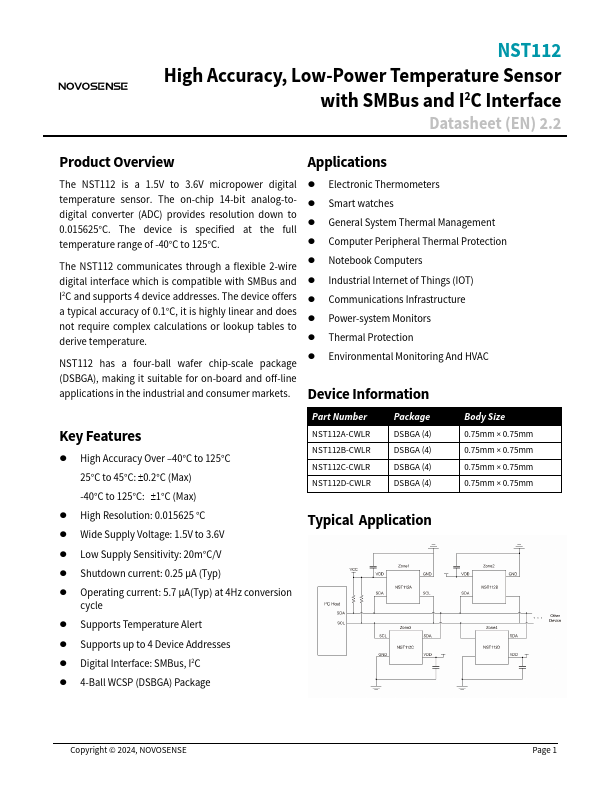

NST112 High Accuracy, Low-Power Temperature Sensor with SMBus and I2C Interface
Datasheet (EN) 2.2
Product Overview
Applications
The NST112 is a 1.5V to 3.6V micropower digital temperature sensor. The on-chip 14-bit analog-todigital converter (ADC) provides resolution down to 0.015625°C. The device is specified at the full temperature range of -40°C to 125°C.
The NST112 municates through a flexible 2-wire digital interface which is patible with SMBus and I2C and supports 4 device addresses. The device offers a typical accuracy of 0.1°C, it is highly linear and does not require plex calculations or lookup tables to derive temperature.
NST112 has a four-ball wafer chip-scale package (DSBGA), making it suitable for on-board and off-line applications in the industrial and consumer markets.
- Electronic Thermometers
- Smart watches
- General System Thermal Management
- puter Peripheral Thermal Protection
- Notebook puters
- Industrial Internet of Things (IOT)
- munications Infrastructure
- Power-system Monitors
- Thermal Protection
- Environmental Monitoring And HVAC
Device Information
Key Features
- High Accuracy Over
- 40°C to 125°C 25°C to 45°C: ±0.2°C (Max) -40°C to 125°C: ±1°C (Max)
- High Resolution: 0.015625 °C
- Wide Supply Voltage: 1.5V to 3.6V
- Low Supply Sensitivity: 20m°C/V
- Shutdown current: 0.25 μA (Typ)
- Operating current: 5.7 μA(Typ) at 4Hz conversion cycle
- Supports Temperature Alert
- Supports up to 4 Device Addresses
- Digital Interface: SMBus, I2C
- 4-Ball WCSP (DSBGA)...
