PESD5V0V1BB - Very low capacitance bidirectional ESD protection diodes

Product Overview

NXP Semiconductors

Datasheet Details

Part number	PESD5V0V1BB
Manufacturer	NXP Semiconductors
File Size	160.52 KB
Description	Very low capacitance bidirectional ESD protection diodes
Datasheet	PESD5V0V1BB Datasheet
Note	This datasheet PDF includes multiple part numbers: PESD5V0V1BB, PESD5V0V1BL. Please refer to the document for exact specifications by model.

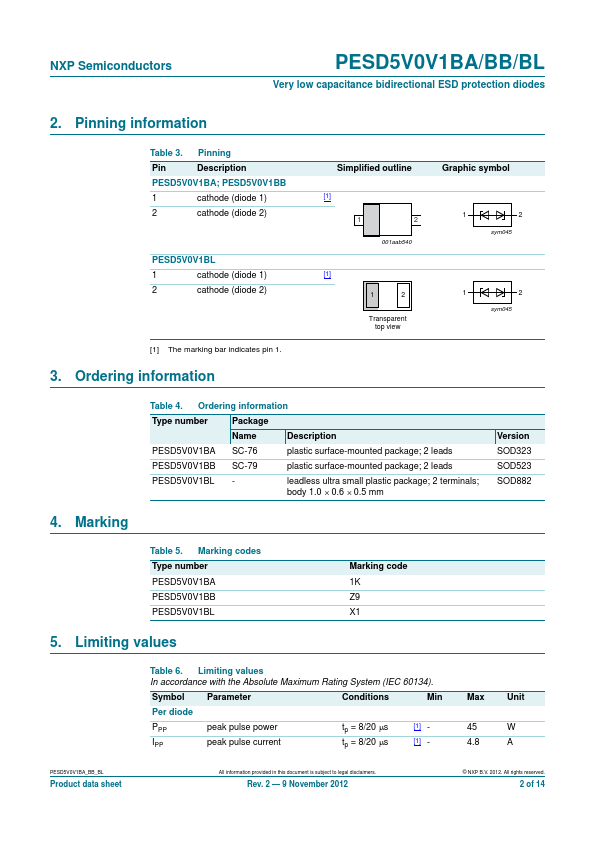

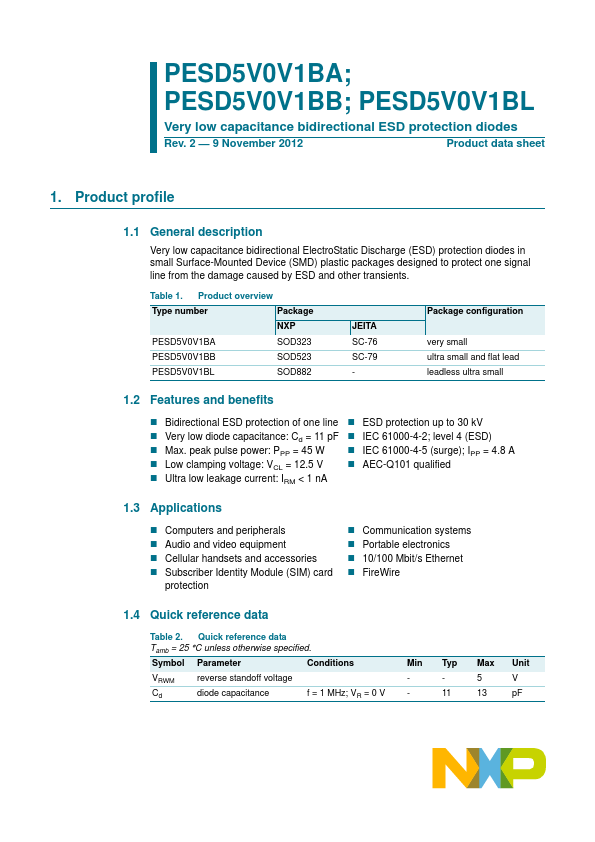

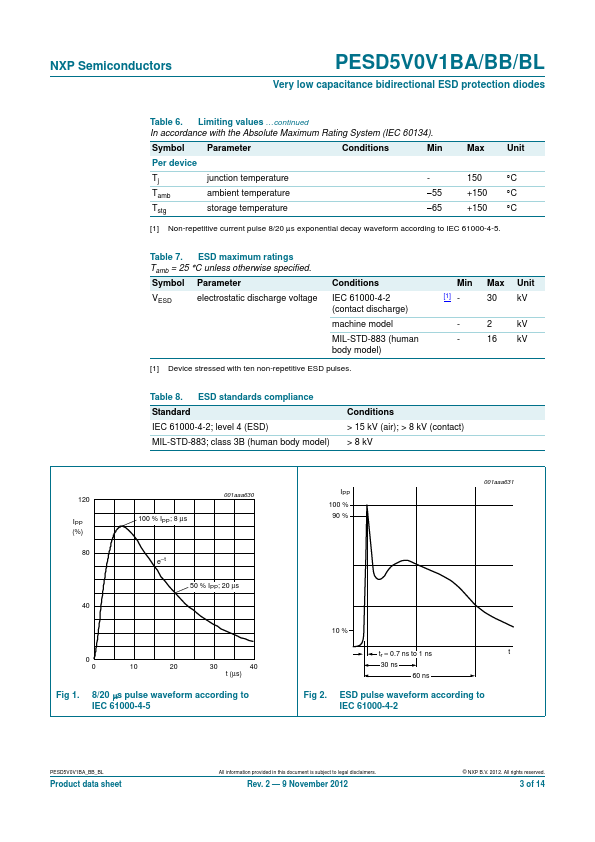

Additional preview pages of the PESD5V0V1BB datasheet.

Product details

Description

Very low capacitance bidirectional ElectroStatic Discharge (ESD) protection diodes in small Surface-Mounted Device (SMD) plastic packages designed to protect one signal line from the damage caused by ESD and other transients.

Features

I I I I I Bidirectional ESD protection of one line Very low diode capacitance: Cd = 11 pF Max. peak pulse power: PPP = 45 W Low clamping voltage: VCL = 12.5 V Ultra low leakage current: IRM < 1 nA I I I I ESD protection up to 30 kV IEC 61000-4-2; level 4 (ESD) IEC 61000-4-5 (surge); IPP = 4.8 A AEC-Q101 qualiﬁed 1.3.
