BSP61 - PNP Darlington transistors

Download the BSP61 datasheet PDF. This datasheet also covers the BSP60 variant, as both devices belong to the same pnp darlington transistors family and are provided as variant models within a single manufacturer datasheet.

General Description

PNP Darlington transistor in a SOT223 plastic package.

NPN complements: BSP50, BSP51 and BSP52.

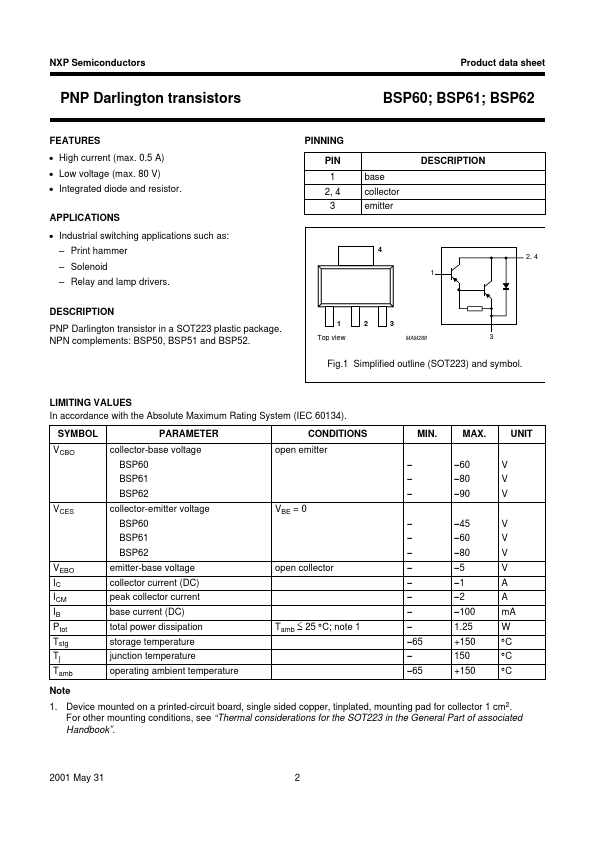

Fig.1 Simplified outline (SOT223) and symbol.

Key Features

  • High current (max. 0.5 A).
  • Low voltage (max. 80 V).
  • Integrated diode and resistor.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BSP60-NXP.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BSP61 PNP Silicon Darlington Transistors Siemens Semiconductor Group
BSP61 PNP Darlington transistor nexperia
BSP61 PNP Silicon Darlington Transistor Infineon
BSP612P Small-Signal-Transistor Infineon
BSP613P Small-Signal-Transistor Kexin

Other Datasheets by NXP Semiconductors

Part Number Description
BSP60 PNP Darlington transistors
BSP62 PNP Darlington transistors
BSP030 N-Channel MOSFET
BSP090 P-channel enhancement mode vertical D-MOS transistor
BSP100 N-channel enhancement mode TrenchMOS transistor

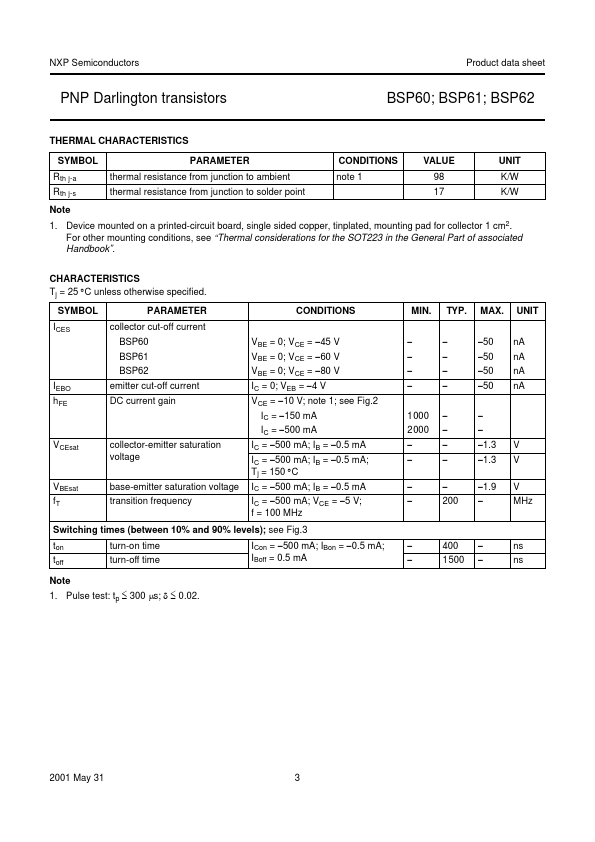

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

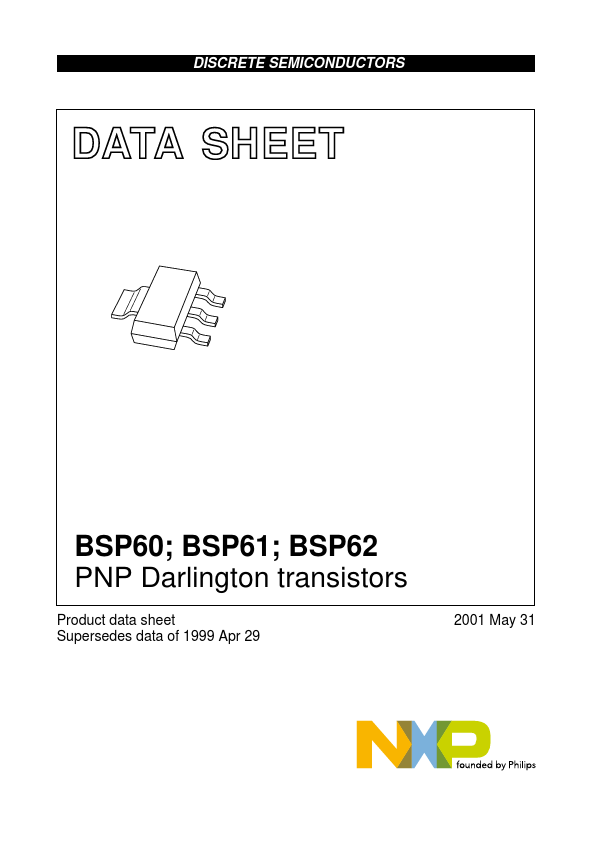

DISCRETE SEMICONDUCTORS DATA SHEET handbook, halfpage M3D087 BSP60; BSP61; BSP62 PNP Darlington transistors Product data sheet Supersedes data of 1999 Apr 29 2001 May 31 NXP Semiconductors PNP Darlington transistors Product data sheet BSP60; BSP61; BSP62 FEATURES • High current (max. 0.5 A) • Low voltage (max. 80 V) • Integrated diode and resistor. APPLICATIONS • Industrial switching applications such as: – Print hammer – Solenoid – Relay and lamp drivers. PINNING PIN 1 2, 4 3 base collector emitter DESCRIPTION 4 2, 4 1 DESCRIPTION PNP Darlington transistor in a SOT223 plastic package. NPN complements: BSP50, BSP51 and BSP52. 1 2 3 Top view MAM266 3 Fig.1 Simplified outline (SOT223) and symbol.
