BSP61 - PNP Silicon Darlington Transistor

Download the BSP61 datasheet PDF. This datasheet also covers the BSP60 variant, as both devices belong to the same pnp silicon darlington transistor family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BSP60-Infineon.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number BSP61
Manufacturer Infineon
File Size 541.98 KB
Description PNP Silicon Darlington Transistor
Datasheet download datasheet BSP61 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BSP61 PNP Silicon Darlington Transistors Siemens Semiconductor Group
BSP61 PNP Darlington transistor nexperia
BSP61 PNP Darlington transistors NXP
BSP613P Small-Signal-Transistor Kexin
BSP615S2L OptiMOS Power-Transistor Infineon Technologies AG

Other Datasheets by Infineon

Part Number Description
BSP612P Small-Signal-Transistor
BSP613P Small-Signal-Transistor
BSP60 PNP Silicon Darlington Transistor
BSP62 PNP Silicon Darlington Transistor
BSP170I -60V Small Signal MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

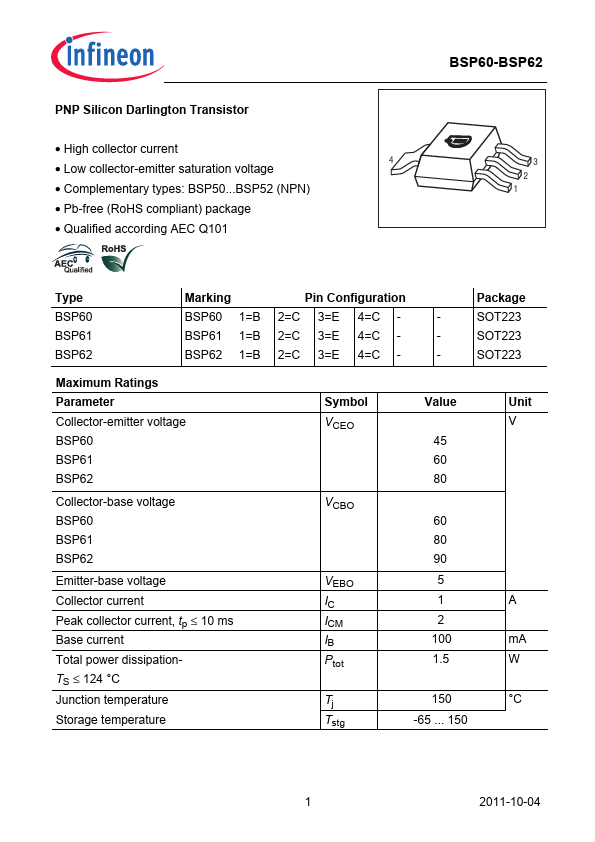

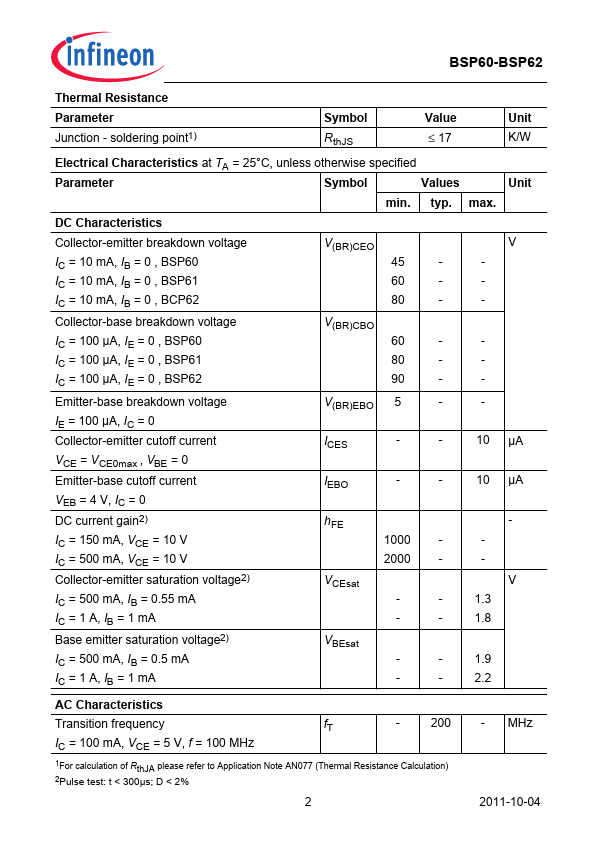

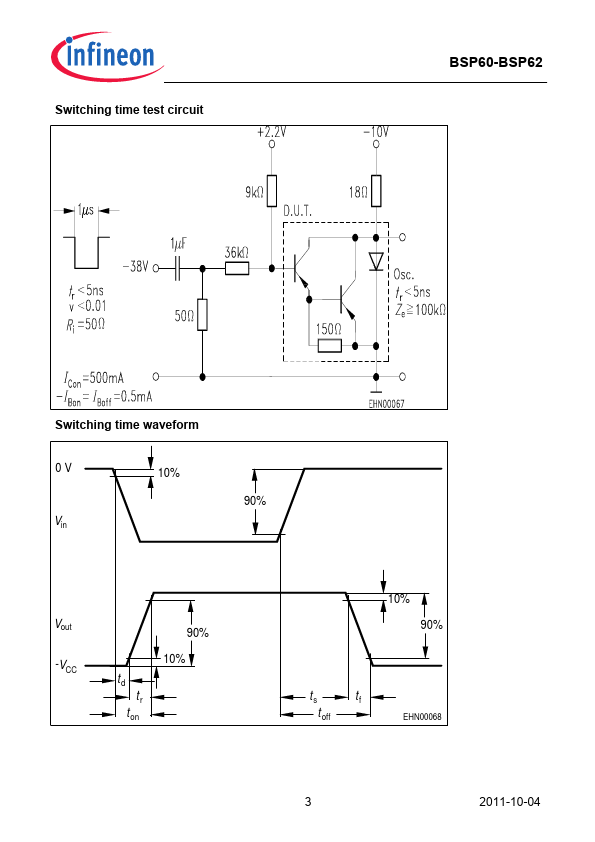

PNP Silicon Darlington Transistor • High collector current • Low collector-emitter saturation voltage • Complementary types: BSP50...BSP52 (NPN) • Pb-free (RoHS compliant) package • Qualified according AEC Q101 BSP60-BSP62 4 3 2 1 Type BSP60 BSP61 BSP62 Marking Pin Configuration BSP60 1=B 2=C 3=E 4=C - - BSP61 1=B 2=C 3=E 4=C - - BSP62 1=B 2=C 3=E 4=C - - Package SOT223 SOT223 SOT223 Maximum Ratings Parameter Collector-emitter voltage BSP60 BSP61 BSP62 Collector-base voltage BSP60 BSP61 BSP62 Emitter-base voltage Collector current Peak collector current, tp ≤ 10 ms Base current Total power dissipationTS ≤ 124 °C Junction temperature Storage temperature Symbol VCEO VCBO VEBO IC ICM IB Ptot Tj Tstg Value Unit V 45 60 80 60 80 90 5 1 A 2 100 mA 1.
