NJL6407R - High Speed Photo Diode

General Description

The NJL6407R is the photodiode sensor capable of detecting light in a wide wavelength range of up to infrared light from the blue-violet light.

A thin and small package of COBP is adopted, and providing high efficient space-saving.

APPLICATION

Laser monitor for Blu-ray, etc.

Monito

Key Features

  • Leadless surface mount type: 2.0 X 2.9 X 0.75mm.
  • Active area: 1.16mm X 1.86mm.
  • High Speed tr/tf=9ns (VR=2.5V ,.
  • =780nm 650nm / 405nm).
  • Pb free solder re-flowing permitted: 260C, 2times.
  • Pb free, Halogen free.
  • Conformity to RoHS directive.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NJL6163R-1 Photo Diode JRC
NJL6165R-1 Photo Diode JRC
NJL6167R-1 Photo Diode JRC
NJL6195R Photo Diode JRC
NJL6201R-1 Photo Diode JRC

Other Datasheets by New Japan Radio

Part Number Description
NJL6401R-3 COBP High Speed Photo Diode
NJL6402R-2 COBP Photo Diode
NJL6414R Photo Diode
NJL6163R HIGH SPEED PIN PHOTO DIODE
NJL6193R-3 Thin type COBP Photo Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

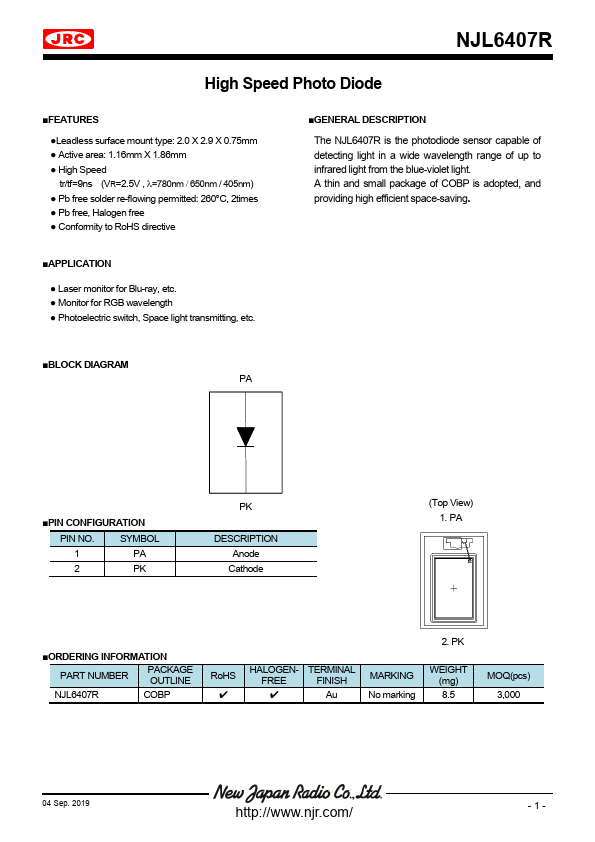

NJL6407R High Speed Photo Diode ■FEATURES ●Leadless surface mount type: 2.0 X 2.9 X 0.75mm ● Active area: 1.16mm X 1.86mm ● High Speed tr/tf=9ns (VR=2.5V , =780nm 650nm / 405nm) ● Pb free solder re-flowing permitted: 260C, 2times ● Pb free, Halogen free ● Conformity to RoHS directive ■GENERAL DESCRIPTION The NJL6407R is the photodiode sensor capable of detecting light in a wide wavelength range of up to infrared light from the blue-violet light. A thin and small package of COBP is adopted, and providing high efficient space-saving. ■APPLICATION ● Laser monitor for Blu-ray, etc. ● Monitor for RGB wavelength ● Photoelectric switch, Space light transmitting, etc. ■BLOCK DIAGRAM PA ■PIN CONFIGURATION PIN NO. SYMBOL 1 PA 2 PK PK DESCRIPTION Anode Cathode (Top View) 1.
