NJL6414R - Photo Diode

General Description

The NJL6414R is the photodiode sensor capable of detecting light in a wide wavelength range of up to infrared light from the blue-violet light.

A thin and small package of COBP is adopted, and providing high efficient space-saving.

APPLICATION Heart rate monitoring of Wearable Devices (I

Key Features

  • Leadless surface mount type: 2.1 X 2.6 X 0.8mm.
  • Sensitive peak wavelength: 900nm.
  • Corresponding to infrared light from the blue-violet light.
  • Active area: 1.5mm X 1.5mm.
  • Pb free solder re-flowing permitted: 260C, 2times.
  • Pb free, Halogen free.
  • Conformity to RoHS directive.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NJL6163R-1 Photo Diode JRC
NJL6165R-1 Photo Diode JRC
NJL6167R-1 Photo Diode JRC
NJL6195R Photo Diode JRC
NJL6201R-1 Photo Diode JRC

Other Datasheets by New Japan Radio

Part Number Description
NJL6401R-3 COBP High Speed Photo Diode
NJL6402R-2 COBP Photo Diode
NJL6407R High Speed Photo Diode
NJL6163R HIGH SPEED PIN PHOTO DIODE
NJL6193R-3 Thin type COBP Photo Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

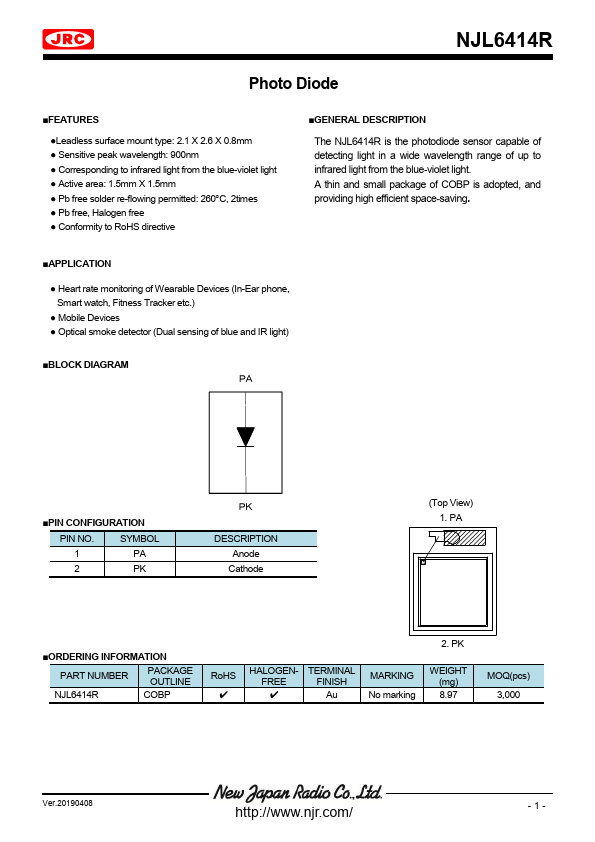

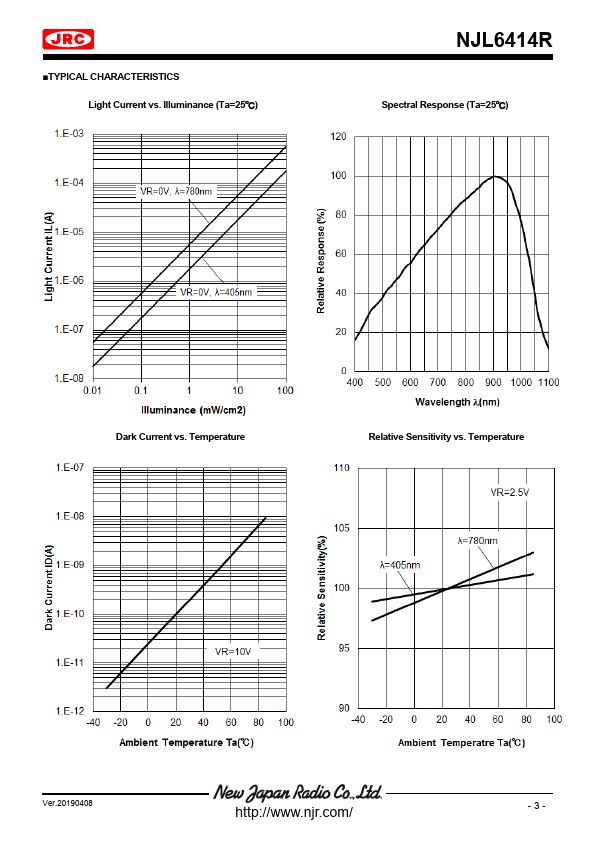

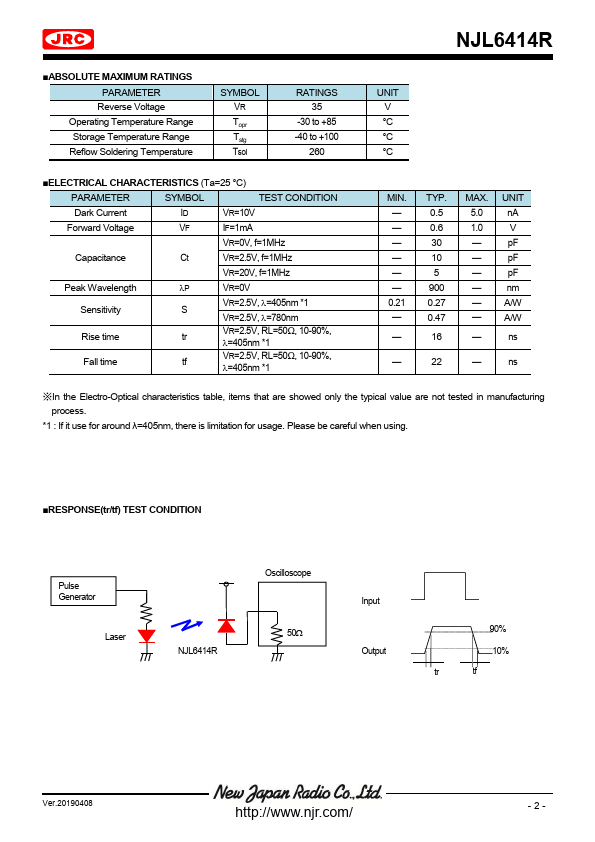

NJL6414R Photo Diode ■FEATURES ●Leadless surface mount type: 2.1 X 2.6 X 0.8mm ● Sensitive peak wavelength: 900nm ● Corresponding to infrared light from the blue-violet light ● Active area: 1.5mm X 1.5mm ● Pb free solder re-flowing permitted: 260C, 2times ● Pb free, Halogen free ● Conformity to RoHS directive ■GENERAL DESCRIPTION The NJL6414R is the photodiode sensor capable of detecting light in a wide wavelength range of up to infrared light from the blue-violet light. A thin and small package of COBP is adopted, and providing high efficient space-saving. ■APPLICATION ● Heart rate monitoring of Wearable Devices (In-Ear phone, Smart watch, Fitness Tracker etc.) ● Mobile Devices ● Optical smoke detector (Dual sensing of blue and IR light) ■BLOCK DIAGRAM ＰＡ ■PIN CONFIGURATION PIN NO.
